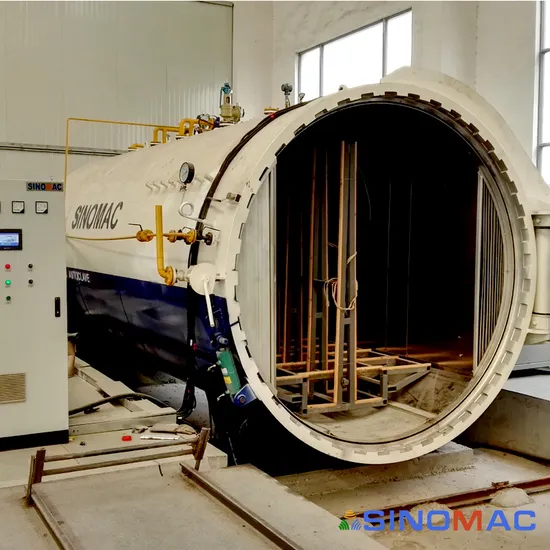

Basic Customization 2000X4500mm ASME Certified Electric Heating Laminated Glass Autoclave/Industrial Autoclave (SN-BGF2045)

Product Description

Note: With many years of experience and development, SINOMAC has obtained the full capacity to offer complete and professional Turnkey Projects for you. It is quite worhty of your choice. Welcome to vist and consult.
1. Usage of SINOMAC Glass Autoclave
In two or more pieces of glass sandwiching a polymer plastic film material, after the initial pressing and then into the autoclave was fully heated, pressurized, and got a kind of synthesis of glass products, known as the laminated safety glass. Laminated products consisting of various raw materials, particularly the process of intermediate membrane in autoclave is important to obtain a high quality of the products. In fact, SINOMAC glass autoclave's role is to ensure access to the product quality requireents, its stabments, ility and process to ensure product to achieve and maintain high standards of quality requirements.
SINOMAC glass autoclave is widely used in the field of Architecture, Automotive and Solar.

2. General Features and Working Curve
The whole operation process of SINOMAC Glass Autoclave has 6 segments. Pre-heating and pre-pressing segment, first segment of temperature and pressure keeping, heating and pressurizing segment, second segment of temperature and pressure keeping, cooling segment, air exhaust segment. During the whole process, temperature and pressure in all segments will be monitored by HIM or PC, and the operation process will be realized by our exclusively developed TPC(Thermal Processing Control)software which is based on PLC control system to ensure the full automatic operation.
3. Technical Description
3.1 Quick opening door
- The whole system consists of three parts: A pair of gear flange, driven devices and seal ring.
- Hydraulically operated door opening and closing.
- The seal ring is made of silicon rubber.
3.2 Insulation system
- Insulation: Inner insulation
- Insulation material: Aluminium silicate+ rock wool
- Internal sheet metal: Stainless steel, 0.8 mm
- Insulation thickness: 80mm
3.3 Floor supports and rails
- Rail loading: 20,000kg, Increased loading can be offered optionally.
- Rail type: Unequal angle steel
- Floor loading: 400kg, Increased loading can be offered optionally.
- Form of floor supports: Mild Steel Checkered Plate
3.4 Heating system
- The heating system consists of the main heating zone and auxiliary heating zone, the heating element located in the rear and sides of the wind duct to ensure uniformity of temperature during the heating process.
- Electric heating via inconel tubular heaters
3.5 Cooling system (heating exchange)
- The main heating exchanger is made of Aluminum finned tube, which located in the rear of the autoclave.
- The auxiliary cooling system is made of Aluminum finned tube. Exchanger mounted in side wall for easy system maintenance.
3.6 Forced convection system
- Parameters of circulating fan
Power: 18.5 KW,
Connecting format: Direct-connected,
Rated rotate speed: 960 r/min(400V/50HZ),
Fan wheel: 7# centrifugal impeller,
Wind pressure: 1100Pa,
Flowrate: 14400M3/h.
- Shaft sealing
Mechanical seal, silicon carbide - graphite materials as static and dynamic ring seal, bearings with high-temperature series.
3.7 Temperature monitoring components
- Air temperature thermocouples: 3, PT100, including HMI monitoring, data-acquisition, and control
- Hi-limit thermocouple: 1, PT100, including HMI monitoring/control.
3.8 Vacuum system
During the treatment of curved stratified glass in the heating and pressurization phases, the material is protected by suitable bags and kept inside them in vacuum conditions, to favour the outlet of eventual air bubbles trapped among the layers of glass and PVB.
3.9 Control System
- Control System is developed based on the research and development toward glass processing industry, including the PLC central controlling part, touch screen (HIM) operation system and network. The operation of the whole system is based on the exclusive developed TPC (Thermal Processing Control )software.
- It can insert or save the production technique process, display the pressure and temperature curve anytime; And its paperless record function can realize record, save and check of technique curve and process parameters.
- Advanced TPC control software makes the controlling technique during the process of temperature waiting for pressure, pressure waiting for temperature possible to ensure the simultaneous effect of temperature and pressure according to the settled technique curve, and it also has over-temperature and overpressure alarm and various safety protection functions.
- Customer can operate register, login and typing in product information, and realize intranet or remote control.
- It can realize data output, printing, analyzing requirements to improve product quality.
3.10 Safety Systems
Safety Interlock device will be install onto each autoclave, and relevant safety interlock procedure will be applied to the whole working procedure. Through the safety interlock system, the autoclave can not be opened when pressure in the autoclave higher than air pressure; it will auto-alarm when facing over-temperature or over-pressure; auto drop the temperature when over temperature, and auto-release when over pressure, which will guarantee the safe operation to the uttermost.
4. Application Advantages

1. Human cost	The whole making process is highly automatic; operation is very easy
2. Power consumption	Electrothermal conversion rate of our nicochrome fin heating tube is more than 95% and the working life can reach 15,000 hours.
3. Stable performance	High-quality shaft seal can make sure stable performance and long working hours.
4. High product rate	Special designed heating tubes and forced air circulation can guarantee stable and uniform temperature and pressure
5. Repair and maintenance	Hydraulic cylinder drive door is automatic and perform-stable.

5. Autoclave Specification

MODEL# SN-BGF2045 GLASS AUTOCLAVE_TECHNICAL PARAMETER
No.	Description	Unit	Specifications and Parameters
1	Inner diameter	mm	2000
2	Working length	mm	4500
3	Max. glass size	mm	1700X4500
4	Autoclave track distance	mm	800
5	Track height	mm	430
6	Design pressure	Mpa	1.5
7	Design temperature	ºC	160
8	Working pressure	Mpa	1.3
9	Working temperature	ºC	150
10	Safety valve exhaust	Mpa	1.4
11	Working medium	---	Compressed air
12	Heating mode	---	Electric(Convection+Radiation )
13	Heater	---	Inconel tubular heaters
14	Heating power	KW	72
15	Circulating fan motor power	KW	11
16	Thermocouple type	---	K or PT100
17	Air temperature thermocouples	Piece	3
18	Pressure transducer	Piece	1
19	Vaccum lines	Piece	4
20	Control mode	---	PLC+PC
21	Control software	---	TPC (Thermal Procession Control)
22	Insulation	---	Internal
23	Supporting air tank	M³	2
24	Working environment temperature	ºC	Min. -20ºC, max. +45ºC
25	Working environment humidity	---	< 60%
26	Power supply	---	220/380VAC, 3P+N+PE, 50/60Hz
27	Weight	KG	8230

6. Foundation and Installation
7. Professional Workshop
From the SINOMAC team, with 15 years of experience.

---
