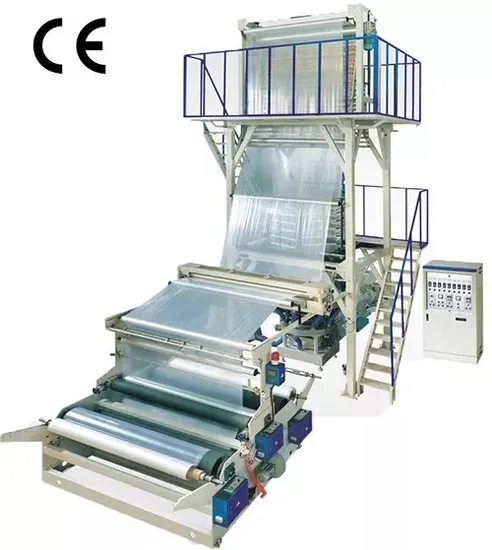

1000mm LDPE HDPE PE Mini Film Blowing Machine Plastic Extruder Agricultural Biodegradable Plastic Bag Blown Film Extrusion Machine

US$6,500.00-25,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SJ60-1000mm
Type
PE Film Blowing Machine
Raw Material
PE
Maximum Folding Width of Film
600-2000mm
Screw Diameter
45-100mm
Automation
Automatic
Computerized
Computerized
Machine Weight
1900kg-6000kgs
Certification
CE
Max Film Width
600mm-2000mm
Single Side Film Thickness
0.01-0.1mm
Screw Ratio
28:1
Screw Speed
10-100r/Min
Size
6000*2400*4800mm
Transport Package
Wooden Case/Warp Film Packing
Specification
SJ45-SJ100
Trademark
HuaRui
Origin
China
HS Code
8477301000
Production Capacity
55-65kg/H

Packaging & Delivery

Package Size
300.00cm * 220.00cm * 220.00cm
Package Gross Weight
3000.000kg

Product Description

1000mm LDPE HDPE PE Mini Film Blowing Machine Plastic Extruder Agricultural Biodegradable Plastic bag Blown Film Extrusion Machine Price
We have all kinds of film blowing machine, welcome to contact us.
Usage:
It is used to blowing low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) and other plastic films. It is widely used in liquid packaging, printing compound, clothing textile packaging, industrial packaging, etc.
Parameters:
Model
SJ-45
SJ-50
SJ-55
SJ-60
SJ-65
SJ-80
SJ-100
Screw diameter
45mm
50mm
55mm
60mm
65mm
80mm
100mm
Screw ratio (L/D)
28:1
28:1
28:1
28:1
28:1
28:1
28:1
Screw speed
10-100r/min
10-100r/min
10-100r/min
10-100r/min
10-100r/min
10-100r/min
10-100r/min
Main output
20-30kg/h
25-35 kg/h
35-50 kg/h
55-65 kg/h
55-70 kg/h
70-90 kg/h
110-140 kg/h
Power of main motor
7.5kw
7.5-11 kw
11-15 kw
15-18.5 kw
18.5-22 kw
30-37 kw
45-45 kw
Specification of die head
φ40-80mm
φ60-120mm
φ100-170mm
φ100-170mm
φ120-220mm
φ150-300mm
φ500mm
Rotational mode of machine head
Continuous rotation
Continuous rotation
Continuous rotation
Continuous rotation
Continuous rotation
Continuous rotation
Continuous rotation
Single-side thickness
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
Max.folding width
600mm
600mm
800mm
1000mm
1100mm
1500mm
2000mm
Total power
19.5kw
22kw
26kw
30kw
42kw
56kw
88kw
Weight of machine
1900kg
2000kg
2300kg
2000kg
3800kg
4600kg
6000kg
Overall dimensions (m)
4.5*1.8*3.5
4.5*1.8*3.5
5.5*2*3.8
6*2.2*4.2
6*2.4*4.3
7*2.7*5.8
8*3.2*7.6


Main Features:
A, Main motor and take-up motor are controlled by frequency inverter adjust
B, Material of screw and barrel: 38CrMoAlA Polished with Nitride Treatment
C. hardness of heat treatment: screw HV≥740, barrel HV≥900Hardening depth: 0.6-0.7mm: 0.6-0.7mm
Brittleness grade: ≤ 2 grade ≤ 2 grade
D. Gearbox: 173 involute cylindrical helical gear, alloy cast steel.
E. Die head material: 45 × 45 / high carbon steel
F. Temperature control by double digital display automatic temperature control meter
Optional options:
1: Rotary die head
2: double winder
3: Corona machine(if need printing)
4: auto suction
5: Meter and weight control
Parts List:
Heating ring: 4Pcs
Temperature Controller: 4pcs
Voltmeter: 4pcs
Thermocouple: 4pcs
Filter: 4 meter
Tools: 1set
Operation Manual: 1pcs
More Machine photos:
Mono layer film blowing machine
Mini lab film blowing machine:
ABA:
Our workshop:
Our Exhibition:
Our Certification :
Machine packing and delivery:
