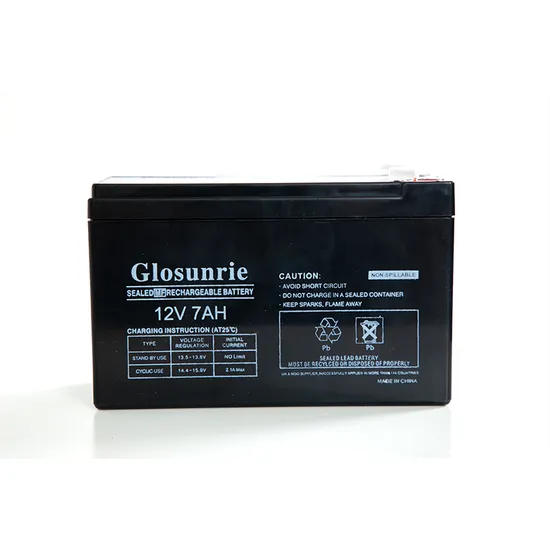

Battery Model | Nominal Voltage | 12V | ||||||||
| Rated capacity (10Hour rate) | 7Ah | |||||||||
| Cells Per battery | 6 | |||||||||
Dimension | Length | Width | Height | Total Height | ||||||
| 151mm | 65mm | 94mm | 100mm | |||||||
| Approx Weight | 2.05Kg | |||||||||
| Internal Resistance | Full charged at 25 | (77 | ): Approx 28m | |||||||
| Max.discharge current | 105A(5s) | |||||||||
| Floating design life @ 25 (77 ) | 5 years | |||||||||
Capacity @ 25 (77 ) | 20Hour rate(0.35A/10.5V) | 10Hour rate(0.64/10.8V) | 5Hour rate(1.2A/10.8V) | 1Hour rate(4.2A/10.5V) | ||||||
| 7Ah | 6.4Ah | 6Ah | 4.2Ah | |||||||
| Capacity affected by Temp(10 HR) | 40 | (104 | ) | 25 (77 ) | 0 (32 ) | -15 | (5 | ) | ||
| 102% | 100% | 85% | 65% | |||||||
Self Discharge @ 25 (77 ) | After 3 months storage | After 6 months storage | After 12 months storage | |||||||
| 91% | 82% | 64% | ||||||||
Charge method @ 25 (77 ) | Cycle Use | 14.5-14.9V (Initial charging current less than 2.1A) | ||||||||
| Float Use | 13.6-13.8V | |||||||||
| F.V / TIME | 5min | 10min | 15min | 30min | 1h | 2h | 3h | 4h | 5h | 8h | 10h | 20h | |
9.60V | A | 25.20 | 16.45 | 12.25 | 8.05 | 4.20 | 2.45 | 1.82 | 1.45 | 1.23 | 0.81 | 0.67 | 0.36 |
| W | 267.12 | 174.70 | 131.08 | 86.94 | 45.78 | 26.71 | 20.02 | 15.91 | 13.51 | 9.00 | 7.38 | 4.02 | |
10.20V | A | 23.10 | 15.46 | 11.26 | 7.64 | 4.34 | 2.35 | 1.79 | 1.40 | 1.20 | 0.80 | 0.65 | 0.35 |
| W | 251.79 | 171.59 | 125.53 | 85.97 | 48.83 | 26.56 | 20.17 | 15.89 | 13.67 | 9.06 | 7.38 | 4.01 | |
10.50V | A | 21.42 | 14.77 | 10.50 | 7.41 | 4.20 | 2.30 | 1.75 | 1.33 | 1.19 | 0.79 | 0.64 | 0.35 |
| W | 235.65 | 166.16 | 118.65 | 84.45 | 47.88 | 26.38 | 20.04 | 15.30 | 13.69 | 9.06 | 7.41 | 4.03 | |
10.80V | A | 19.51 | 14.12 | 9.80 | 7.07 | 4.06 | 2.25 | 1.72 | 1.31 | 1.14 | 0.77 | 0.63 | 0.34 |
| W | 214.57 | 160.93 | 112.21 | 81.66 | 46.89 | 25.94 | 19.89 | 15.22 | 13.25 | 8.94 | 7.31 | 3.98 | |
11.10V | A | 16.87 | 13.30 | 9.10 | 6.58 | 3.85 | 2.19 | 1.65 | 1.28 | 1.09 | 0.75 | 0.61 | 0.33 |
| W | 190.63 | 153.62 | 105.56 | 76.99 | 45.05 | 25.59 | 19.33 | 15.14 | 12.84 | 8.81 | 7.23 | 3.92 | |
