Professional CNC Router Machine Scan Handheld 3D Scanner for Modeling CCD 360 3D Face Laser Scanner

Product Description

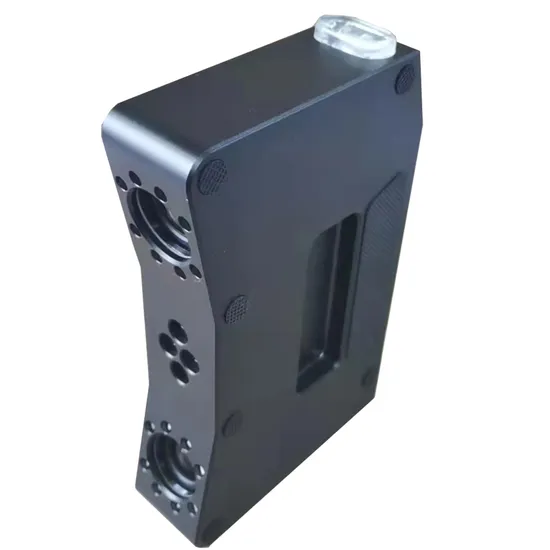

Product Description 3D Scanner Protable/Handheld model
Product Parameters Features&Parameters:

Model	SCAN-S
	Standard Mode	Fine Mode
Range of View	300mm	120mm
Point Distance	0.25mm	0.12mm
Accuracy	0.1mm	0.03mm
Scan Volume	300-4000mm	50-300mm
Working Distance	500mm±30%
Hardware	ONSEMI1310000pixel 600fps/TI 1280*800Led Raster
Interface/Voltage	USB3.0/12V 5A/100-240V 60HZ/1.5A
Scanning speed	Non-contact/1,000,00 points/S, 0.3S/image
Alignment	Mark align/Feature align/Frame align
Software	Global register/Fill holes/Decimate/Smoothen
PC Require	Win10 + 64bit/CPU I7 +Nvidia as main GPU
Certification	CE /FCC/ WEEE/ CNAS

Characteristic:
1. Dark and black objects can be directly scanned, eliminating dependence on contrast enhancers;
2. Two scanning modes, with or without spot scanning, save a lot of time.
3. High precision and fast speed.
Industry applications:
Complete vehicle and accessories; Aerospace ships; Rail transit; Mechanical design and manufacturing; Home decoration; Architectural relics; Educational research; Virtual reality display; Crafts and Buddha carving industry; 3D printing kit Detailed Photos Detailed Photos:
Sample pictures
Customer Feedback Customer Feedback:
After Sales Service Our Services:
1.We have many exhibitions every year, and hundreds of customers come to our booth for further communication.
2.24 hours online support.
3.Support sample testing.
4.We welcome you to visit our factory.
FAQ
1. How could you ensure the accuracy?
For handheld scanner, calibration accuracy is the average frame accuracy, it's around 0.04mm. When you scan different targets, there are incalculable images accumulated, so we can't forecast the final volume accuracy, luckily, we have frame alignment, which could provide a structure and fill scan, thus ensure the volume accuracy within 1mm/M.
2. What's the warranty policy?
1-year free warranty + 2 year charged warranty (spared parts with cost price)
3.Could you send products to my country?
Yes, we do business in every corner of the world, please contact us to consult the details delivery charge.

---
