Flat-Die 9PK Series Pellet Machine (9PK-200/250/300)

US$980.00-3,000.00 1 Set (MOQ)

Basic Info.

Model NO.
9PK-200/250/300
Processing Technics
Crushing-before-Mixing
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
Roll Crusher
Pellet Mill Type
Flat Die Pelletizer
Bulking Machine Type
no
Expanding Method
no
Condition
New
Applicable Materials Shape
Powder
CE,SGS
Yes
English Manual
Yes
Delivery Time
7-10 Days
Certificate of Origin
Issued by Chamber of Commerce
Payment Term
50%T/T as Deposit, The Banlance Will Be Paid After
Warranty Time
1 Year
Transport Package
Wooden Box
Specification
CE
Trademark
VIC
Origin
China
Production Capacity
300sets/Year

Product Description

Flat-Die 9PK Series Pellet Machine (9PK-200/250/300)

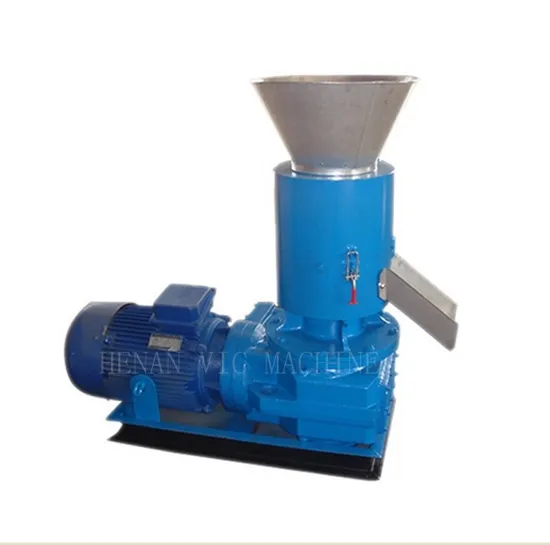

9PK pellet mill with motor
Introduction:
Our 9PK system pellet mill is our matured ,flat mould biomass equipment, uit is driven by gear box, which can it can not only extrude biomass, sawdust pellet from straw, bamboo powder, rice hull, all kinds of wood but also also can get feedstuff pellets from corn, oil cake the fish, chicken, animal and so on.
Main data:
Model Power(KW) Weight(kg) Dimension(mm) Capacity(kg/h)
9PK-250 15 450 1550*500*1250 250-300
9PK-300 22 550 1150*700*1350 300-400
9PK-350 30 750 1150*700*1350 450-550

9PK-E pellet mill
Introduction:
This pellet mill is driven by diesel engine,it can used to make the biomass, sawdust pellet from corn straw, green waste, bamboo powder, grazing, straw, rice hull, all kinds of wood and so on. It also can make feedstuff pellets from corn, oil cake the fish, chicken, animal and so on.
Main data :
Model Power(hp) Capacity(kg/h) Weight(kg) Size(mm)
9PK-300E 32 300-400 550 1150*700*1300
9PK-350E 35 450-550 750 1250*750*1400

9PK-T pellet mill
Introduction:
This is one kind of tractor driven pellet mill, it can be connected with tractor and removed.
Main data:
Model Power(hp) Capacity(kg/h) Weight(kg) Size(mm)
9PK-300T 30 400 400 750*700*1350
9PK-350T 40 550 500 790*730*1350
