7203 Series Planetary Gear Motor Gear Ratio: X:1 Output Shaft: 8mm Hexagonal Axis Length: 24mm,6000rpm,3.3-5V Encoder Compatible Robot Gobilda/Tetrix/Rev/Ftc/

Product Description

All products in our store Ex-factory price not free shipping
For more information, please contact online customer service or email me(zhouyu8@ zhouyu8@ thefirsttool.co m)

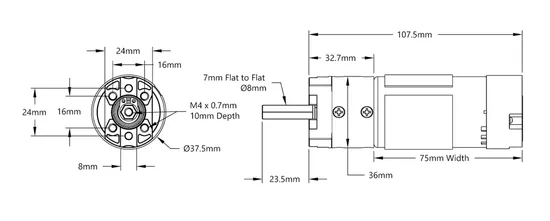

7203 series planetary gear motors can provide your robot with smooth, efficient and powerful power. The end face has 6 M4 screw mounting holes, and the mounting holes adopt the standard Zhouyu robot hole pattern, which greatly facilitates fixing the motor to other Zhouyu robot parts. The 8-mm hexagonal shaft output shaft is supported by double roller bearings, which allows the motor to handle huge torque loads and improve efficiency. The diameter of the gearbox reaches 36mm, fix the gearbox on the motor with screws from the side. This fixing method helps the gearbox to have super resistance to loosening. Although the gearbox itself is larger, the clever design of the head shape leaves more room for nearby components. The relative quadrature encoder is capable of running at 3.3V and 5V. Motor size RS-555 motor type, brushed DC nominal voltage 12VDC output shaft 8mm, hexagonal shaft, 24mm long, gearbox style, planetary, gear ratio 1:1/3.7:1/5.2:1/13.7:1/19.2:1/26.9:1/50.9:1/71.2:1/99.5:1/139:1/188:1/ gear material, steel, no-load speed @ 12VDC 6000 rpm, no-load current @ 12VDC 0.25A locked-rotor current @ 12VDC 9.2A stall torque @ 12VDC 1.47 kgs. Centimeters (20.45 Oz inches) Wire length 470mm (including Connector) wire gauge 16AWG motor connector type 3.5mm FH-MC bullet connector, encoder connector type 4-Pos JST XH [FH-MC] encoder type, relative, orthogonal, encoder sensor type, magnetic (Hall effect) encoder voltage range 3.3 - 5VDC encoder resolution, 28 PPR on output shaft on output shaft, weight 396g
Thefirsttool is a parts library specially built for individuals and teams such as robot competitions and robot enthusiasts.
It is compatible with gobilda/Tetrix/REV/FTC/FRC and other competitions, and can meet the daily creative construction needs.
Shenzhen Zhouyu Intelligent Technology Co.,Ltd , founded in 2007 and Dongguan Zhouyu Intelligent Technology Co.,Ltd, founded in 2015, is a leading STEAM education solution provider.We are the largest manufacturer of Educational mini machines and Educational metal robot in China. the Educational metal robot can use for the FTC

Targeting the STEAM education and entertainment markets for schools, educational institutions and families, thefirsttool provides the most complete hardware, software, content solutions, and a top-notch robotics competitions, with the aim of achieving deep integration of technology and education.
