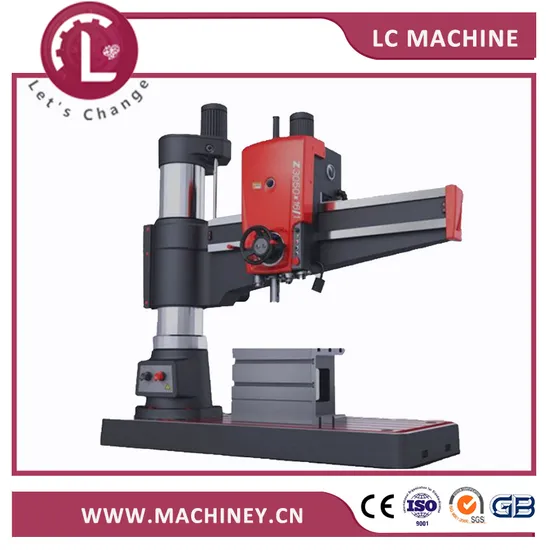

LC-1000dr Rocker Arm Type Drilling Machine

Product Description

LC-1000DR ROCKER ARM TYPE DRILLING MACHINE


Product Introduction

Z series radial drilling machine, is my factory design experience for many years of professional engineers to design, development of products, it has a simple and practical, operation, maintenance is convenient wait for a characteristic, the advantages of other drilling machine and divided into an organic whole, to increase the drilling machining range, such as boring, tapping, sets of wire, spot-facing, drilling, reaming, reaming, and other functions, is widely used in small and medium enterprises, villages and towns and industrial machinery processing.

Base Data

Main technical parameters		unit	Z3032×10/1	Z3040×10/1	Z3040×12/1	Z3040×13/1	Z3050×16/1	Z3063×20/1	Z3080×25	Z30100×31
Maximum hole diameter		mm	32	40	40	40	50	63	80	100
Distance from spindle center line to column bus	maximum	mm	1000	1000	1250	1300	1600	2000	2500	3150
	minimum	mm	350	350	350	350	350	450	500	570
Distance from spindle end to base working face	maximum	mm	980	1150	1150	1150	1220	1600	2000	2500
	minimum	mm	260	260	260	260	320	400	550	750
travel of spindle		mm	200	200	220	280	315	400	450	500
Spindle taper (Mohs)			4#	4#	4#	4#	5#	5#	6#	6#
range of spindle speed		r/min	34-1220	28-1280	28-1280	22-1400	25-2000	25-1600	16-1250	8-1000
number of spindle speeds			12	12	12	12	16	16	16	22
Range of spindle feeds		mm/r	0.1-0.25	0.1-0.25	0.1-0.25	0.1-0.25	0.04-3.20	0.04-3.20	0.04-3.20	0.06-3.2
Number of spindle feeds			6	6	6	6	16	16	16	16
bed dimension		mm	380×430	390×550	390×550	390×550	500×630	630×800	800×1000	800×1250
Spindle box horizontal movement distance		mm	900	900	900	900	1250	1550	2000	2580
Main motor power		kw	2.2	3	3	4	4	5.5	7.5	15
Machine weight about		kg	1300	1500	1800	2100	3500	7000	11000	20000
Machine tool size (length × width × height)		mm	1600× 705×2040	1800× 710×2300	1800× 710×2300	2300× 1030×2500	2500× 1070×2840	3080× 1250×3291	3730× 1400×4025	4780× 1630×4600

Manufacturing

Production Capacity

Factory Address: No.1 Yintai North Road, Shutian, Humen Town, Dongguan, City, China
R&D Capacity: Own Brand, ODM, OEM
No. of R&D Staff: 160
No. of Production Lines: Above 10
Annual Output Value: US$15Million
APPLICATION


Company Profile Launch Precision Machinery Co.,Ltd (LC Machine) is a professional modern enterprise, with long-term research & development, manufacturing, sales, after-service. The company gathered engineer team who engaged in CNC machine and mould manufacturing for decades , won trust and support from domestic and oversea clients by good idea, excellent design,reliable quality,full service.
The company has absorbed the advantages of NC technology from Germany and Japan and gathering the leading technology from domestic and foreign industries. All machines are marked ISO 9001 and CE, exported to 58 countries. Main products: Duplex milling machine, Vertical gantry milling machine, Side milling machine, Powerful gantry grinder, Cutting machine, Chamfering machine etc.
We are committed to be the No.1 brand in 6 side milling machine and one-stop service supplier in mould processing industry, serving global client , promoting mould processing industry to reach new level.


After-Sale Service

1. Installation services for free.
2. Operation training for free.
3. We will create files for every client, to track product quality and after service.
4. Providing one year (12 months) warranty for free except for the wrong operation by the user . The spare part is not on the free warranty list.
5. Providing maintenance and repair service termly.
6. Seller will provide solution way within 72 hrs once receiving A-F service request from the buyer.

FAQ
Q: Are you a manufacturer or Trading Company?
A: We are a innovative interprise with rich import & export experience and 10 professional production line.Warmly welcome you to visit our factory. Q: Do you have Agency in my country?
A: With the development of our company, we are expanding export gradually to get a bigger worldwide share of marketing.(The United States/ Korea / India / Southeast Asia etc.). Till now, we have agence in India/Korea/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: How can I Install the machine, and What should I do if my machine was broken down
A: We provide free installation service to your home. If your machine was broken, please contact us immediately and we will give you solution way within 48 hours.
Q: Can you support OEM Service?
A: Sure, As your requirement, We would like to make the plan and provide the best service for you.

---
