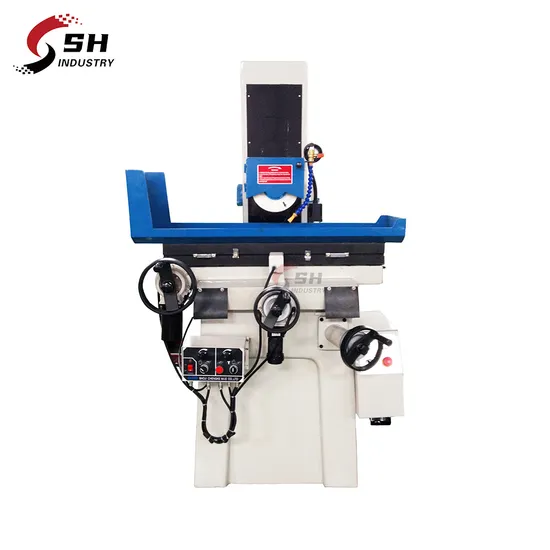

MD820 Small Surface Grinder Electric Flat Surface Grinding Machine

Product Description

MD820 Small Surface Grinder Electric Flat surface grinding machine
Product Description
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. The transverse motion of the working table can be used to realize the mechanical transmission and the manual transmission.
3. The longitudinal movement of the working table can achieve mechanical drive and manual drive.
4. Can grinding a variety of flat and complex shape, suitable for grinding without motorized feed, according to the user needs to be equipped with permanent magnetic sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Main technical specifications:

Specifications							Units	MD618A	MD820	MD1022
workbench		Worktable size (L * W)					mm	460×180	480×200	540×250
		Max. travel of table					mm	500×190	530×220	560×260
		Table T slot (slot number x slot width)					mm	1×14	1×14	1×14
Grinding head		The grinding wheel size (o. d * w * i. d.)					mm	φ180×13×Φ31.75	φ200×20×Φ31.75	φ200×20×Φ31.75
		Distance spindle center line to working table					mm	335	440	420
		Grinding wheel speed				50HZ	r/min	2850	2850	2850
						60HZ	r/min	3440	3440	3360
The amount of feed		Table longitudinal (left and right) speed					m/min	3-20	3-20	3-20
		Transverse (front and rear) feed handwheel feed			Continuous (stepless)		mm/min	300	300	400
					Intermittent (stepless)		mm/min	0-5	0-5	0-5
					Handwheel per turn		mm	2.5	2.5	4.0
					Handwheel per lattice		mm	0.02	0.02	0.02
		The vertical (up and down) feed handwheel feed				Handwheel per turn	mm	1.25	1.25	1.25
						Handwheel per lattice	mm	0.01	0.01	0.01
Reversing feeder X- feeder output speed		Total input power					W	150	150	150
		X- feeder output speed					r/min	0-225	0-225	0-225
		X- feeder size					mm	280×130×120	280×130×120	280×130×120
		Y- feeder output speed					r/min	0-120	0-120	0-120
		Y- feeder size					mm	280×130×120	280×130×120	280×130×120
Motor power			Spindle motor				kw	1.1	1.1	1.5
			Cooling motor				W	40	40	40
working accuracy	The process surface of the base level of the parallel degree						mm	300:0.005	300:0.005	300:0.005
	Surface roughness						μm	Ra0.32	Ra0.32	Ra0.32
Machine weight				Net weight			kg	667	767	880
				Gross weight			kg	767	867	980
External size (L * w * h)							mm	1550x1150x1590	1680x1140x1760	1680x1140x1760
Packing size (L * w * h)							mm	1000x1150x1760	1140x1250x1940	1200x1400x1940

Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
