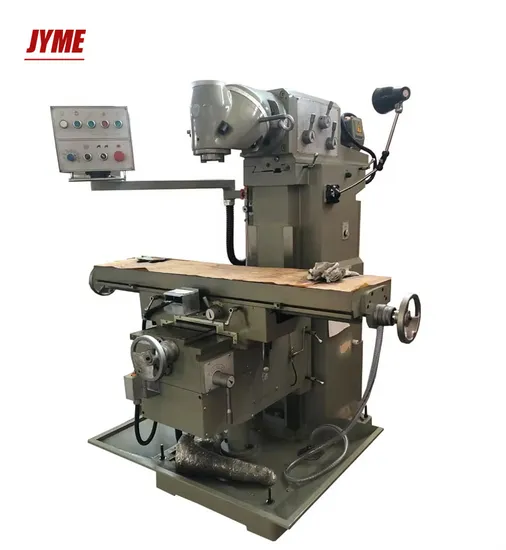

X6230 Universal Milling Machine China Precision Milling Machine

Product Description

The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, the worktable size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device.
Product main technical parameters:

Specifications	Units	X6230
Table size	mm	1270x300
Table travel	mm	700/300/400
T-slot numbers / width /space	mm	3-14-80
Spindle taper		ISO40
Spindle speed range	rpm	45-1660rpm
Distance between spindle nose and table surface	mm	100-500
Distance between spindle axis and table surface	mm	0-400
Range of table feed	mm /min	XY:30-830 Z:23-625
Milling head swivel range	°	360
Spindle motor power	kw	3
Feed motor power	kw	1.1
Weight	kg	1700
Overall dimension	mm	1700x1760x1700
