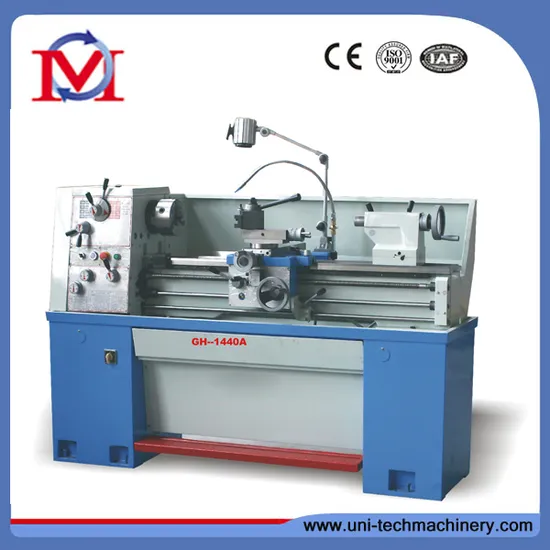

China Supplier Turning Lathe Machine for Metal (GH1440A)

Product Description

China Supplier Turning Lathe Machine for metal (GH1440A)
Feature of our lathe: Precision ground and supersonic frequency hardened bed ways. The lathe machine spindle is supported with precision roller bearing; Headstock gears are made of high quality steel, ground and hardened; Removable gap is provided for larger diameter work; Easy operating gear box has various feeds and thread cutting function
Specification of our gap bed lathe:

Model		GH1440A
Max.Swing.over bed	mm	Φ356(14')
Max.Swing.over cross slide	mm	Φ220(8-5/8')
Max.Swing.over gap	mm	Φ506(20')
Bed width	mm	206(8')
Max.Distance between centers	mm	1000(40')
Taper of spindle bore		MT#5
Diameter of spindle bore	mm	Φ38(1-1/2')
Steps of spindle speeds		16steps
Range of spindle speeds	r/min	45-1800rpm
Spindle nose		D-4
Metric thread range	mm	0.45-7.5(22kinds)
Inch screw thread range	TPI	4-112(40kinds)
Range of longitudinal feeds	mm	0.03-0.688(0.0011-0.0271'in/rev)
Range of cross feeds	mm	0.015-0.220(0.0003-0.01'in/rev)
Diameter of leadscrew	mm	Φ22(7/8')
Pitch of leadscrew	mm	4(8T.P.I)
Travel of tailstock quill	mm	120(4-3/4')
Diameter of tailstock quill	mm	Φ45(1-25/32')
Taper of tailstock quill		MT#3
Main motor power	Kw	1.5/2.4
Packing size of lathe(LxWxH)	mm	1900 x760 x1460
Net Weight/Gross Weight	Kg	960/875

Standard accessories:
3 Jaw chuck(Φ160mm),
Change Gears Set,M.T.#3
Dead Centers,M.T.#5/3
Reduction Sleeve,
Oil gun,
Splash Guard,
Foot stands,
Tool Box&Tools,
Oil Tray
Optional accessories:
4 Jaw chuck(Φ200mm),
Face Plate,
Steady Rest,
Follow Rest,
Work Light,
Foot Brake System,
Coolant System,
Live Center,
Drill Chuck+Drill Arbor,
Leadscrew Guard,
Chuck Guard,
Localizer,
Clutch For Feed Rod,
Quick Change Tool Post,
Digital Readout(2 Axis)

Our service:
We also would like to let you know our warranty about our machines. What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
