1W 450nm Fiber Coupled Diode Laser Detachable

Product Description

Product Description
Item Name
1W 450nm Fiber Coupled Diode Laser Detachable
A multimode fiber-coupled high-power blue diode boasting an impressive output power of over 1W! This state-of-the-art 450 nm laser diode module serves as the ultimate solution for various applications, including flow cytometry, fluorescence, and biomedical research.
One of the standout features of this fiber laser is its detachable design, allowing for enhanced versatility and ease of integration into existing setups. The detachable feature empowers users with the flexibility to customize their experimental arrangements and tailor the laser's output to meet specific requirements.
Feature
Small and easy to handle, and is ideal for embedding in equipment
Mountable & Portable.
Very low size and weight
Long lifetime, high brightness, high reliability and stability
Application:
Optical test instruments
Fiberoptic sensors
fiberoptic networks
Laser scanning display
Photography/ Printing

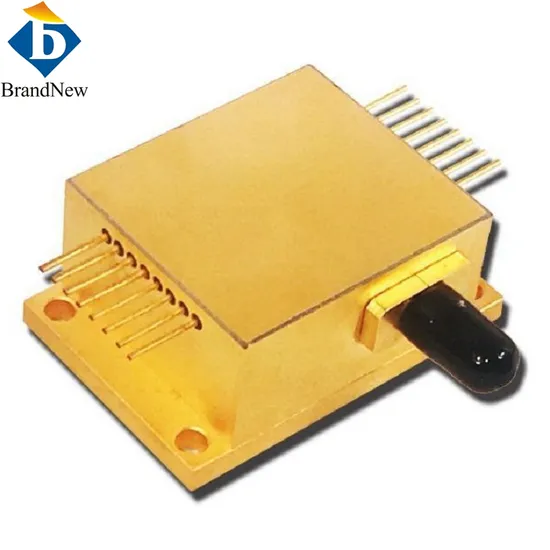

Product Photo
Product Specification

Optical
Center Wavelength	450nm
Output Power	1W
Fiber	Detachable
Fiber Core	400um
Fiber Length	1M
Fiber N.A.	0.22NA
Fiber Connector	Optional
Electrical
Operating Current Lop	3A
Threshold Current Lth	0.2A
Operating Voltage Vop	4V
Thermal
Operating Temperature	15~55ºC
Storage Temp.	-30~70ºC

Size Drawing
Delivery & Packing
Packing: One set in a case(According to your request) Delivery: Normally 1-2 Weeks FedEx,DHL Express, UPS, TNT Payment Term: T/T and Western Union, For your Choice Return Policy: Buyer Pay the Shipping Cost.

---
