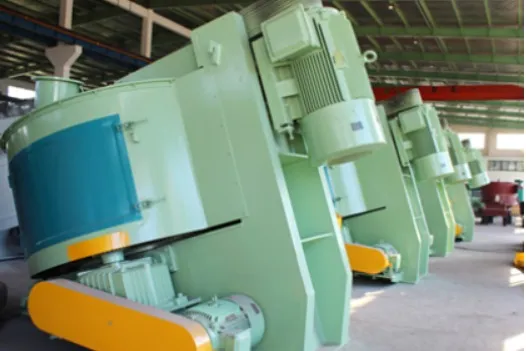

R11 Intensive Mixer Used for Glass/Ceramic/ Foundry Sand/ Refractory Material Mixing

Product Description

Advantages of the mixer:
1. The shortest mixing time produces the maximum mixing efficiency;
2. Low wear and high energy utilization;
3. The quality of the mixture is good and stable;
4. The working mode is intermittent or continuous;
Features of the mixer:
Mixing, reacting, emulsifying, dispersing, separating, plasticizing, forming, venting, crushing, fibrillation, decomposition, coalescence

Model		PEX35	PEX55	PEX110	PEX125
Mixing drum	Diameter(mm)	350	550	1100	1250
	Height(mm)	275	360	750	800
	Mixing motor(Kw)	1.1	2.2	7.5	11
	Running speed(rpm)	36 (variable frequency)	27(variable frequency)	20	19
Agitator	Diameter(mm)	180	280	580	650
	Mixing motor(Kw)	5.5 6-stage	15 4 -stage	22	37
	Running speed(rpm)	970(variable frequency)	800(variable frequency)	600	300(variable frequency)
Mixing volume(L)		10-15(max 20KG)	20-40(max 60KG)	150(max 250KG)	300(max 400KG)
Material discharge		Drum tilting	Drum tilting	Hydraulic discharge	Hydraulic discharge
Hydraulic unit(Kw)		0.75	0.75	2.2	2.2
Overall dimension(L*W*H)		950×550×1750	1088×700×2020	2240×1500×2200	2200×1700×2300
Hydraulic unit(Kw)		0.9	1	3.5	4.3

Mixing principle:
Adopting international advanced mixing principles, the cylinder is inclined by 20 °, and the mixing disk rotating clockwise + high-speed three-dimensional rotor rotates counterclockwise to produce mixing under the strong shearing action of the agitator. After the material is brought to the top by a rotating agitating barrel, It was peeled off from the inner wall by the scraper arm and dropped down, so that the mixing in the vertical direction was well achieved.

Special wall section:
The "L" inner wall and bottom scraper are used to rotate the three-dimensional rotor counterclockwise to the upper right and rotate at a high speed. The scraper continuously peels off the materials remaining on the bottom and edges of the tank and sends them to the mixer. At the end of the mixing cycle Promote the discharge of materials in a short time, which can help 100% of the materials participate in mixing and play a self-cleaning role.

Cases:
Increase in mixing uniformity:
Addition of a small amount of organic additives can also achieve the best dispersion effect. The slanted barrel rotation drive adopts the toothed elliptical roller table slewing support. Compared with the traditional toothed arc rolling to the slewing support, its bearing capacity is increased by 30% and the service life is more than doubled.
Applications:

---
