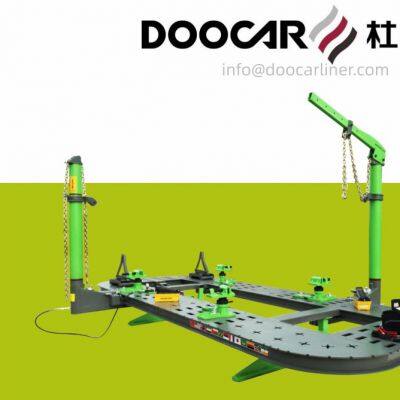

B30 auto body repair equipment is one frame machine that can help you repair any collision damaged vehicles that enters your workshop, from slight cosmetic work to full-frame repairs. We really know the importance of one fast and profitable machine for one auto body shop, we dedicated to designing developed Doocar brand car collision repair equipment that is most preferred in collision repair industry.
B30 features:
The auto body frame machine is controlled by hydropneumatic system. 2 separate controlling system to control frame bench lifting and drawing aligner respectively.
The auto body frame rack dimension is Width 2260mm, Length 5600mm or 6000mm, the deck single side Width 500mm. Q345 manganese steel plate platform and tilt deck permit a vehicle to be driven onto the bench frame for quick anchoring of chassis clamps. The cross and rectangular tie-down holes for virtually unlimited quick holding.
The lifting mechanism of frame bench gets patented. It is operated simply. The ram gets protected from pollutant invasion. The collision automobile can drive on and off the frame bench easily and quickly.
The specific Q345 manganese steel pulling post is rigid and safe.160×2000mm pulling tower can finish pulling or straightening of body frame of SUV, MPV and pickup trucks, CMB, and light trucks besides family cars.
360 degree swivel pulling post can move freely along the frame bench perimeter. The upper and bottom pulling system can make any body collision repair work easily.
The clamping jaw made of 35CrMo alloy steel can anchor vehicle chassis firmly and safely.
The anchoring clamp height can be adjusted with T-type easy-rotating screw to meet different height car chassis.
The anchoring clamp is secured onto the frame bench with 10.9 level high rigidness bolts. It is quick, safe and reliable.
35CrMo alloy steel forging pulling tower clamp can meet the straightening and alignment of damaged auto body.
High-rigid 8620 alloy steel 80-class pulling chain is durable, safe and reliable, and long life.
B30 auto body collision repair equipment in 4S body shops:
>>
