Automatic Paper Corner Cutter and Punching Machine

US$10,000.00-20,000.00 1 Set (MOQ)

Basic Info.

Model NO.
RYPM-500
Species
Round Applanation Die Cutting Machine
Imprinting Type
Platen
Placing Form of Template
Vertical
Die Cutting Tool
Metal Mold
Computerized
Non-Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials, Stickers Products, Dust-proof Material
Max. Cutting Size
340X340 mm
Min. Cutting Size
150X150mm
Stack Height
250mm
Cutting Pressure
50kn
Work Speed
8beats/Min
Transport Package
Wooden Case
Specification
CE
Trademark
ROYAL
Origin
China
HS Code
84418090
Production Capacity
20set/Month

Product Description

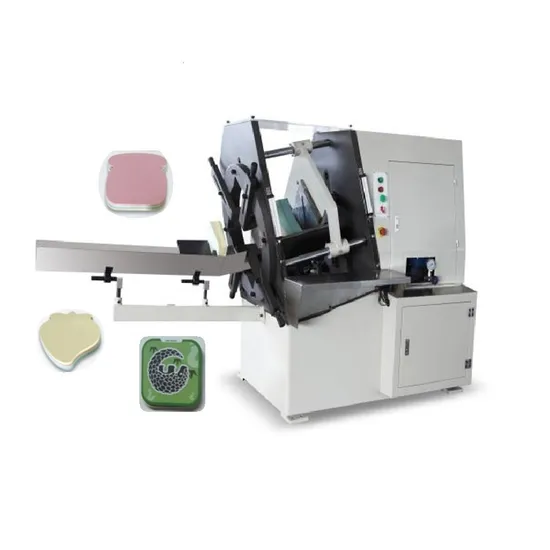

RYPM-500 Automatic Paper Punching Machine
Introduction:
RYPM Series Paper Punching machine is suitable for the production of labels, playing cards, aluminum plastic, New year card, note book, envelopes of any design or size.
Machine with an average production of about 900.000 production of high precision hourly.
It adopts hydraulic pressure system. with a push-cube self-adjusting to every position of the "V" hold where the pack is positioned in order to obtain a homogeneous pression and distribution of the paper. The working table has a photoelectric cell which gives maximum safety to the operator and allows a quick change of the hollow punch and is adaptable both for low and medium production. The working process is completely stability. The die cutting products surface is smooth, and the size is unified and regular with high precision.
Main Parameters:
Model RYPM-500
Max. cutting size 340*340 MM
Min. cutting size 150*150mm
Stack height 250mm
Cutting pressure 50KN
Work speed 8beats/min
Power 4kw
Net weight 1140kg
Package size 2500*1040*1660MM
NOTE: the quality of paper products and knife are in a great relationship. Our company's knife is after completion of the process of the six high-quality die, characterized by high accuracy, high hardness, wear-resistant
