Automatic High Speed Vacuum Homogenizer Emulsifier Mixer

US$12,000.00-15,000.00 1 set (MOQ)

Basic Info.

Model NO.
ZJR-150
Application
Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Chemical, Pharmaceutical
Certification
CE, ISO
Condition
New
Control System
Button Control
Cooling Method
Water Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Capacity
100-249L
Mixing Drum Shape
Conical
Speed Control
Single Speed
Speed Range
30-39 R/min
Stirring Type
Forced
Temperature Control
With Heating
Working
High Speed Mixer
Type
Preparation Machinery
Finished Dosage Form
Emulsifier
Precision
High Precision
Voltage
220V
Computerized
Computerized
Warranty
1 Year
Name
Vacuum Homogenizer Mixer
Transport Package
Wooden Case
Specification
GMP
Trademark
SUPM
Origin
China
Production Capacity
200sets/Year

Packaging & Delivery

Package Size
1.30cm * 1.12cm * 1.52cm
Package Gross Weight
500.000kg

Product Description

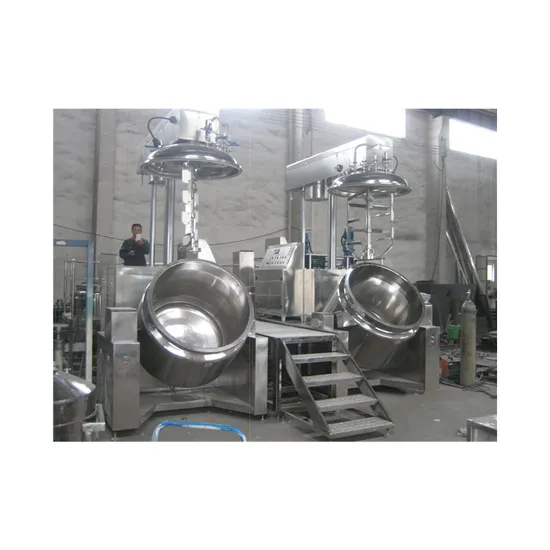

Automatic High Speed Vacuum Homogenizer Emulsifier mixer
Applications
The equipment is suitable for emulsification of the pharmaceuticals, cosmetic, fine chemical products, especially the material having high matrix viscosity and solid. It works by homogenizer, fixed stirrer, scrapers residues stirrer.
Composition:
ZJR Vacuum Emulsifying Mixer Series is composed of emulsification boiler(fluctuating cover, overturn kettle form or outside circle form), water boiler, oil water, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. etc.
It can make various facial cream, lotion, shower, ointment, shampoo, paste, gel, honey, meat, milk, sauce etc.
Features:
The pot cover is automatic rising type, the material was directed draw into the emulsifying boiler from oil boiler and water boiler based on a pipe that is under vacuum, the discharge is based on the turn the emulsifying boiler. And the heating system is electric heating or steam heating that the temperature is automation control. Put the cool water into the intercalated bed so cooling the material, simple operation and safety( at the outside have a warm layer). The homogenizer and the blade stirring can together work or separate work. The material sliming, emulsification, mixing, dispersing, etc. What will finished during short time. Contact position adopt high-quality stainless steel (medical use adopt 316L material make with supplies, the polishing of surface of the mirror of interior surface, mix the hygiene of the device in vacuum, it accords with the normal hygiene standard manufacture of GMP to adopt that is most ideal production equipment).
Name
ZJR-150ZJR-200ZJR-250ZJR-350
Emulsifying
Tank
Design Volume (L)150200250350
Capacity (L)120160200280
Scraper
Stirring Power (KW)
1.52.22.22.2
Scraper Stirring
Speed (rpm)
0-860-650-650-65
Homogenizer Power (KW)4444
Electrical Heating
Power (KW)
681212
Homogenizer Speed (rpm)2800280028002800
Water TankDesign Volume (L)100120160250
Capacity (L)8095128200
Power (KW)0.550.750.750.75
Speed (rpm)1400140014001400
Electrical Heating
Power (KW)
68812
Oil TankDesign Volume (L)75100130250
Capacity (L)6080105150
Power (KW)0.550.750.750.75
Speed (rpm)1400140014001400
Electrical Heating
Power (KW)
68812
