Hot Selling Ysz Single Crystal Substrate and Competitive Price on Sale

Product Description

Products Description

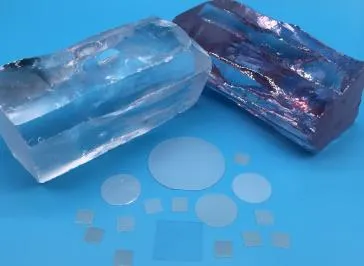

YSZ Zirconia (ZrO2) single crystal substrate is one of the earliest high-temperature superconducting substrates developed and applied. Due to the need for ZrO2 to be doped with yttrium (Y) to stabilize its structure, YSZ single crystals - zirconia single crystals with yttrium stabilizers - are generally used in practice. It has good mechanical and chemical stability, low price, and is particularly suitable for use in the preparation of positive films.
Product Parameters

Crystal structure	cube
Lattice constant	a=5.147 Å
Melting point ()	2700
Density (g/cm3)	6.0
Hardness	8-8.5mohs
Fineness	99.99%
Thermal expansion coefficient ()	10.3×10-6
Dielectric constant	ε=27
Growing directions	Arc melting method
Size	10x3,10x5,10x10,15x15,, 20x15,20x20, or custom-made
		dia 2" x 0.33mm dia2" x 0.43mm 15 x 15 mm
Thickness	0.5mm1.0mm
Polishing	Single or double-sided
Crystal orientation	<001>±0.5º
Crystal face orientation precision:	±0.5°
Edge orientation precision:	2° (up to 1°)
Slant chip	The wafer with edge-oriented surfaces (1° -45°) can be processed at specific requirements
Ra:	≤5Å5µm×5µm
Package	100 clean bag, 1000 ultra-clean room

Company Profile

Shanghai Opticrystal Materials Co., Ltd was established in 2014 , mainly engaged in the R&D, processing and sales of optical crystals, electronic and semiconductor materials, as well as laboratory equipment, spare parts, consumables and other products. With a professional R&D, processing and sales team. Our products have been widely sold and used in laser processing, new energy vehicles, photovoltaics, optical communications, aerospace, ships, nuclear detection, medical beauty, consumer electronics, electricity, Environmental protection, scientific research and other fields, the products are exported to Europe, America and Southeast Asia and other regions.
Why Choose Us
FAQ 1. Who are we?
We are based in Shanghai, China, and the company started from 2014. Products have been sold to Europe (30.00%), North America(30.00%), South America(20.00%) and East Asia (20%).There are total about 35 employees in our company. 2. How can we guarantee quality?
With over 10 years manufacturing experience and strict quality control system, the products quality is ensured. Also samples are available before mass production; Always final Inspection before shipment.
3.What can you buy from us? . Optical Crystals :
Laser crystals: Nd:YAG, Cr4+:YAG, Yb:YAG, Tm:YAP, Ho:YAG , Ho:YAP, Er:YAG, Er: glass, Nd:YLF, Nd:YVO4, Ti3+:Al2O3 and bonded crystals. Scintillation crystals: Ce:LuAG, Ce:GAGG, Ce:YAG.
Piezoelectric crystals: BaTiO3, Quartz, (PMN-PT), LiTaO3, LiNbO3,LGS.
Magneto-optic crystals: TGG, TSAG,TLF, KTF, CeF3, YIG.
Acousto-optic crystal: TeO2. Birefringent crystals: YVO4, α-BBO.
Nonlinear crystals: β-BBO, KDP, DKDP, LBO, KTP, PPLN. Metal Single crystals: Al, Cu, Mg, Ni.
Single crystal substrates: Al2O3, GGG/NGG/SGGG,LSAT, LaAIO3, MgO, MgAl2O4, SrTiO3, YSZ, TiO2.
Gemstones: Ruby, Sapphire, Emerald.
. Precision Optics:
Optical windows, filters, lenses, prisms, objective lenses, cylindrical mirrors, mirrors, beam combiners, beam expanders,
wedge mirrors, glued mirrors, etc.; materials include BK7, K9, quartz glass, sapphire, silicon Si , Germanium Ge, zinc selenide ZnSe, calcium fluoride CaF2, magnesium fluoride MgF2, barium fluoride BaF2, zinc sulfide ZnS and so on.
. Optical Devices:
Photoelectric Pockels Cell: BBO, KDP, DKDP, LN/MgO:LN, LGS, KTP, RTP. Faraday Optical Isolators: Polarization-independent isolator, polarization-dependent isolator, near-infrared visible light free-space isolator, in-line isolator, circulator, etc.
Optical Modulators: lithium niobate phase modulators, fiber-coupled acousto-optic modulators, spatial acousto-optic
modulators, acousto-optic Q switches, acousto-optic filters, acousto-optic deflectors, and acousto-optic drivers.
Special Optical Fiber:
special silica optical fiber, single optical fiber, optical fiber bundle, optical fiber passer, optical fiber collimator.
. Semiconductor Materials:
Quartz, diamond, GaAs, Si, Ge, ZnO, AlN, GaN, GaO, SiC, LiTaO3, LiNbO3, etc.
Ceramic Substrates: Si3N4, Al2O3, AlN, ZrO2.
Sputtering targets: single crystal target, metal target, alloy target, ceramic target, compound target, rare earth target.
. Laboratory equipment and consumables:
Optical platforms, translation stages, mirror frames, teaching experiment modules, spectrometers, power meters, lasers, pulsed
xenon lamps, scientific research electric furnaces, performance testing equipment, consumables, etc.
4. What services can we provide?
Free samples
Customization
24hours online service.
After sales service
Packaging & Delivery

---
