Best API 7K Certification Rotary Drilling and Vibrator Hose High Pressure Flexible Hose 5000 Psi Rotary Hose Mud in Vibrator Hose Line API Spec 7K

Product Description

Product Description

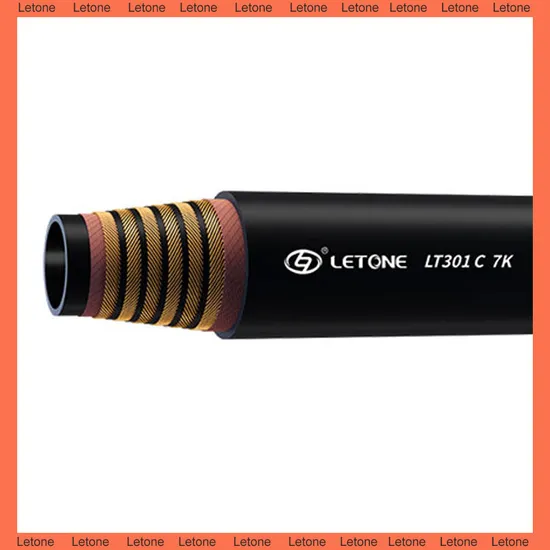

LT301API 7K--Rotary Drilling And Vibrator HoseApplication:flexible connection between the upper end of the standpipe and the top drive/swivel and between the pump and the lower end of the standpipe for pumping mud at high pressure in oil drilling and exploration work.Inner Tube:NR&SBR sythentic rubber/HNBR/UPE/PTFEReinforcement:many layers of high tensile super flexible spiral steel wire or steel cableTube Type:full flowOuter Layer:abrasion and weather resistant synthetic rubberTemperature Range:-20ºC~+121ºC(-4ºF~+250ºF)Connectors:ntegral union or integral flangeProduct Parameters

PRESSURE LEVEL	I.D.	O.D.	W.P.	P.P.	Min.B.P.	Min.B.R.	Weight
psi	in.	mm	psi	psi	psi	mm	kg/m
1500 Grade A	2	68	1500	2250	3750	800	4.3
	2 1/2	84	1500	2250	3750	800	5.6
2000 Grade B	2	68	2000	3000	5000	800	4.3
	2 1/2	84	2000	3000	5000	800	5.6
	3	97	2000	3000	5000	950	6.5
	3 1/2	113	2000	3000	5000	1000	8.5
	4	127	2000	3000	5000	1000	10.4
	5	157	2000	3000	5000	1200	14.0
	6	183	2000	3000	5000	1300	18.0
4000 Grade C	2	72	4000	6000	10000	800	6.4
	2 1/2	87	4000	6000	10000	800	8.7
	3	102	4000	6000	10000	1000	11.1
	3 1/2	119	4000	6000	10000	1200	14.4
	4	132	4000	6000	10000	1200	16.0
	5	162	4000	6000	10000	1400	24.5
	6	194	4000	6000	10000	1500	33
5000 Grade D	2	75	5000	7500	12500	800	6.4
	2 1/2	90	5000	7500	12500	800	8.7
	3	104	5000	7500	12500	1000	11.1
	3 1/2	121	5000	7500	12500	1200	14.4
	4	134	5000	7500	12500	1200	16.0
	5	167	5000	7500	12500	1400	24.5
	6	196	5000	7500	12500	1600	33
7500 Grade E	2	77	7500	11250	18750	900	8.5
	2 1/2	94	7500	11250	18750	1000	10.5
	3	110	7500	11250	18750	1000	18.5
	3 1/2	128	7500	11250	18750	1200	20
	4	150	7500	11250	18750	1400	30
	5	183	7500	11250	18750	1600	49
	6	212	7500	11250	18750	1600	60

Packaging & Shipping
International Exhibition
Application Scenario
Company Profile
Established in 2003, Letone is an industry-recognized high-quality rubber hose manufacture and service company, which devotes to the production, R&D, and sale of rubber compounds, rubber hoses & fluid connectors and rubber-plastic seals. Thanks to its stable quality and good reputation in the market, Letone has won the"Top Ten Rubber Hose Enterprises in China" issued by the China Rubber Industry Association Rubber & Belt Branch for many consecutive years. On 15th Nov. 2021, Letone (Stock Code: 832225) is listed on the Beijing Stock Exchange.Letone now has 46 high-speed steel wire braiders, 12 steel wire spiral production lines, 8 industrial hose production lines, 200 CNC lathes and 2 automatic rubber compound production lines service in-house. Meanwhile, Letone is capable to produce rubber compounds 15,000 tons per year, rubber seals and other rubber products 20 million pieces per year, and the annual production capacity of hydraulic hoses and industrial hoses has increased to 30 million meters.
Certifications
As an experienced professional hose manufacturer, Letone has obtained the Safety Certificate of Approval for Mining Products, certificate of MSHA, API Type Approval (API 16C and API 7K), ABS Type Approval (Drilling Equipment and Flexible Wire Braided Rubber Hose Assembly), GOST certificate, Lloyd's Fire Test Certificate and meets the requirements of quality management systems such as ISO14001:2015, ISO9001:2015, API Q1, IATF 16949:2016, etc. Letone also holds the environment management system international certification issued by IMS (comply with ISO14001:2015 standard). The Letone Testing Center has obtained the Laboratory Accreditation Certificate issued by CNAS in 2016. There are more than 20 laboratories include impulse test laboratory, burst test laboratory, fire test laboratory, salt spray laboratory, etc. The testing report is identified as objectivity, accuracy and authority.
Success Case
New high pressure hydraulic hose replaces rubber hose in oil and gas applicationsProducts used in the rigorous oil and gas industry must be resilient and of high quality to properly support these complex operations. Hoses and connections must be safe, versatile and efficient. Rubber hoses have their limitations when used in harsh environments. One of the problems is bubbling of the inner tube. Foaming is caused by fluid seeping into the rubber core tube over time. When the pressure is released quickly, the fluid will try to escape quickly and damage the rubber core tube, causing blisters, which in turn cause leak paths in the core tube. Letone Hydraulics has developed high pressure hoses specifically for subsea applications. The core tube is made of nylon, time- and field-proven for use in subsea applications, and chemically compatible with subsea control fluids.
Offshore Drilling Mud HoseSlurry hoses are bulk delivery hoses for the offshore oil and gas industry. For transfer from shore to ship and onboard installation of drilling fluids, including most fluids used in hydrocarbon drilling operations. Especially those containing large amounts of suspended solids, emulsified water or oil and all types of water-based, oil-based and synthetic-based drilling fluids. Drilling, completion and workover fluids sometimes referred to as muds, although essentially free of solids, are not strictly believed to be successfully used with this hose.
More Products
1,Question: What are your hose products?
Solution: The main material of our hoses is rubber. In order to cope with different hose usage conditions, there will be different hoses, such as high temperature resistant steam hoses, corrosion resistant chemical delivery hoses, ultra-high pressure cleaning hoses, Petroleum drilling hoses, etc.
2,Question: What certificates do you have?
Solution: Each hose we produce has obtained corresponding certificates, especially ISO and ABS system certificates, which is the recognition of our production capacity.
3,Question: How long is your lead time?
Solution: Usually the delivery period is 15 days
4,Question: How long is the service life of your hoses?
Solution: Different hoses have different service life, but the hoses we produce are relatively long-life hoses on the basis of standards

---
