1000kg/H Washing Machine for Recycling Plastic Pet Bottles Flake

US$30,000.00-126,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
QX-PET
Material Processed
Plastic Bottle
Plastic Type
Pet PP PE
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE
Name
1000kg/H Washing Machine for Recycling Plastic Pet
Inverter
ABB Brand
Motor Brand
Siemens Beide/Weg
Raw Material
Pet Bottle
Contactor
Siemens Contactor
Color
Customised
Temperature Controller
Rkc/Omron
Weight
10-20t
Voltage
220V 380V 400V 415V 440V(Customized)
Tank Materials
SUS304
Washer Type
Cooling Washer+Hot Washer
Bearing
NSK/Sfk
Heating Way
Electric Heating/ Steam Heating
Keywords
Pet Bottle Washing Recycling Machine
Transport Package
Standard Shipping Package
Specification
25mx2.5mx2.2m
Trademark
CAMEL
Origin
China(Mainland)
HS Code
84772090
Production Capacity
800 PCS/Year

Product Description

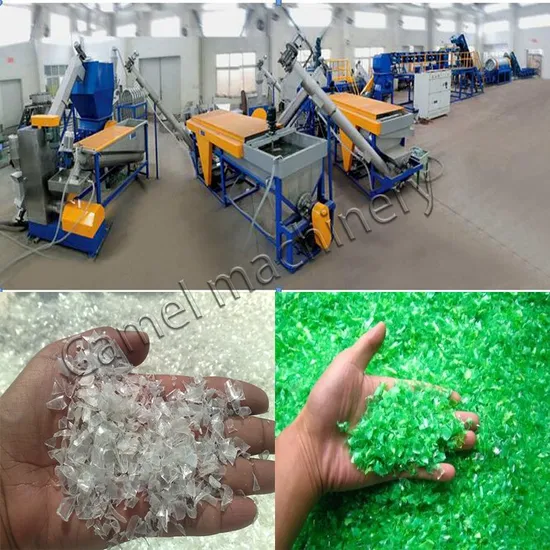

1000kg/h washing machine for recycling plastic PET bottles flake
Product Description
1. This line is mainly used for recycling the waste PET bottle, PET container etc.
2. To separate PET bottles to flakes from label, cap, oil, garbage.
3. This line is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
4. Easy to operate, Full automatic.
5. Production capacity: 300KG/H, 500KG/H, 1000KG/H, 1500KG/H, 2000KG/H
Main Advantage :
1. Automotive line for recycling the PET bottles and other waste plastic profile, except the film.
2. The final product is the cleaning flakes, if you want the final product is pellets, we should equip the granulator line again.

Process flow:
Belt conveyer → Rolling separator →Manual pick table → Metal separator → Belt conveyer → Crusher → Label Separator → Hot washer 1 → Friction washing machine → Hot washer 2 → High-speed friction washing machine → Rinsing tank → Spray washing→ Dewatering machine → Blower dryness system → Storage hopper → Finished product packing
Features :
Capacity: 300-2000kg per hour
Moisture of PET Flakes: Less Than 1.5%
Cap &Label separate with the PET bottle flakes automatically
Bottle Types: PET Bottle, Plastic Bucket, Water Bottle, Coke Bottle,
Application: PET Strap, PET Yarn Fiber, PET Sheet
Machine capacity(Kg/h) 300kg/h 500kg/h 800kg/h 1000kg/h 1500kg/h 2000kg/h
Balers Opener / optional optional Yes Yes Yes
Label Remover optional optional optional Yes Yes Yes
Sorting Table optional optional optional Yes Yes Yes
Metal Detector optional optional optional optional optional optional
Belt Conveyor Yes Yes Yes Yes Yes Yes
Crusher Yes Yes Yes Yes Yes Yes
Screw Feeder Yes Yes Yes Yes Yes Yes
Friction Washer Yes Yes Yes Yes Yes Yes
Floating Washer Tank Yes Yes Yes Yes Yes Yes
Hot Washer optional Yes Yes Yes Yes Yes
Dewatering Machine Yes Yes Yes Yes Yes Yes
Air Dryer Yes Yes Yes Yes Yes Yes
Silo Yes Yes Yes Yes Yes Yes

Our machine are qualified with CE certificate. We can Provide you Turn Key Solution.
