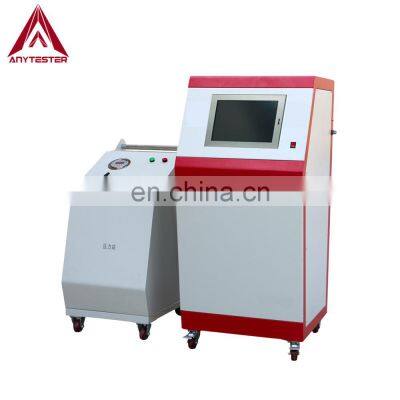

AT470 Hydrostatic Pressure Tester is mainly used to determine time-to-failure of plastic pipe under constant internal pressure and also the resistance to hydrostatic pressure in a short time period.
Standard
ASTM D1598, 1599
| ASTM F1335
| ISO 1167, 9080, 1756, 13477
|
GB/T 15560, 18252, 6111
| CJ/T 108
|
|
Note: For more standards, please contact us
|
|
|
Specification
Model
|
| AT470
|
Pipe diameter range
|
| Φ10~Φ2000mm
|
Working position
|
| 6 positions (1~50 positions can be customized)
|
Operation mode
|
| Operation panel/PC control
|
Pressure range
|
| 0.2~10MPa (or customized)
|
Pressure resolution
|
| 0.001MPa
|
Pressure control accuracy
|
| -1%~+2%
|
Measuring range
|
| 5%~100% F.S.
|
Timing range
|
| 1s~10000h
|
Timing accuracy
|
| ±0.1%
|
Display resolution
|
| 1s
|
Min. Time setting unit
|
| min
|
Temperature control system
|
| RT-95℃
(15~95℃ with refrigerating system)
|
Temperature control accuracy
|
| ±0.5℃
|
Main body material
|
| 304# stainless steel
|
Power supply
| Pressure control main machine
| AC220V, 50Hz
|
| Pressure workstation
| 3phase, AC380V, 50Hz
|
| Constant temperature tank
| 3phase, AC380V, 50Hz
|
Details & Features
★ The main machine consists of pressure control unit, magnetic valve, sensor, pressure workstation, etc.
★ The number of working position can be customized according to requirement, that is to say, the interface of pressure can be customized such as 3, 6 or 10
★ The dimension of test tank needed bases on the dimension of test pipes
MODEL
| Dimensions (mm)
|
|
| Power
|
| L
| W
| H
| (kw)
|
110
| 750
| 450
| 700
| 6
|
160
| 1620
| 770
| 1305
| 9
|
250
| 1750
| 870
| 1675
| 9
|
400
| 2250
| 950
| 1450
| 12
|
630-710
| 2750
| 1370
| 1235
| 18
|
800-1000
| 3100
| 1670
| 1555
| 27
|
1200
| 3100
| 1950
| 1915
| 54
|
★ Refrigerating system optional. The test tank can be connected with refrigerating machine to perform low-temperature test, thus test temperature can be RT-95℃ or 15~95℃
★ Stainless end caps of different diameter can be selected according to customers’ requirement, the material is stainless steel or carbon steel
Stainless steel end caps
|
|
|
End closures
|
|
|
Specification
|
| D16~D1600
|
Structure
|
| Pan structure
|
Sealing ring
|
| O-ring
|
Conversion connector
|
| PT1/4, internal thread, stainless steel material
|
End closures connector
|
| M12*1.25, internal thread
|
Pressure range
| D16~D110mm
| 0~10MPa (20MPa max. For D16/20/25 )
|
| Φ125~Φ630mm
| 0~5MPa
|
Material
|
| Stainless steel
|
★ One microcomputer control one working position, it can separately set and control pressure, accuracy, time and other parameters while the computer does not work. Real-time display pressure, time and status (8 statuses: pressure rise, pressure compensate, pressure release, over- pressure, run, test over, leakage, burst) and also store these test data. It is also equipped with sound and light alarm when over-pressure, test over, leakage or burst happens ★ Imported (Germany) pressure control electric valve, two pieces for each working position, high accuracy
★ Imported (USA) water pressure station, excellent performance, long service life, low noise, no need to use air source
★ Adopt high precision sensor, the control accuracy can reach ±0.01MPa of set value
★ Can observe, analyze, check, store and print test curve (pressure-time), start time, set time, current time, effective time, ineffective time, remaining time, over-pressure time, pressure compensation time, etc.
