| Electrical Specifications | |

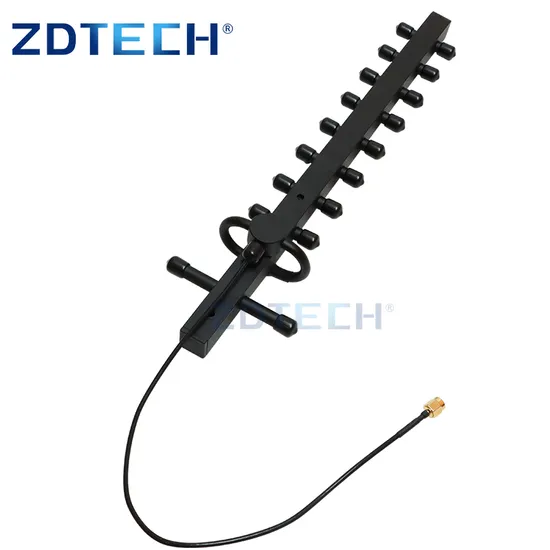

| Model NO. | ZD-DYA-1.5G |
| Frequency Range(MHz) | 1570-1620 |
| Gain(dBi) | 10±1 |
| Polarization | Vertical |
| VSWR | ≤1.5 |
| Front to Back ratio(dB) | ≥15 |
| Maximum Input Power(W) | 50 |
| Impedance(Ω) | 50 |
| Lightning Protection | DC ground |
| Mechanical Specifications | |
| Connector Type | SMA Male |
| Dimensions(mm) | |
| Cable | RG58/U,300mm length |
| Effectivewind area() | ≤0.2 |
| Rated wind velocity(m/s) | 60 |
| Reflector material | Aluminum |
| Radome material | ABS |
| Operation Temp.-ºC | -40~+90 |
| Mounting hardware(mm) | φ35~φ50 |
