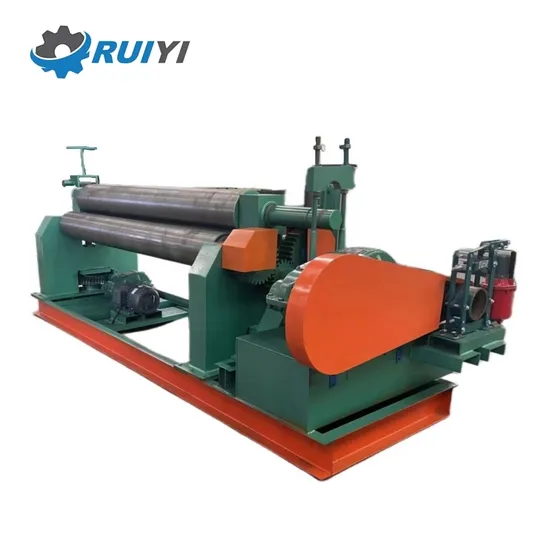

8X2000 8X2500 Economic Electric Mechanical Symmetrical Automatic 3 Three Slip Roll Roller Rolling Machine

Product Description

FEATURES
1.8x2000 8x2500 Economic electric Mechanical Symmetrical automatic 3 three slip roll roller rolling machine
2.The machine is composed by two main parts, there are working parts and transmission parts. Working parts include two lower roll and one upper roll with roll bearings. The lower roll is the capstan, the upper roll is driven roll. Height of upper roll can be adjusted freely. Besides, the transmission part contain main motor, reduction box, etc.
3.The main motor drive the main reduction box, and then the main reduction box drive the lower roll. Direction of rotation of the lower roll can be controlled by the main motor.
4.Subsidiary motor drive the subsidiary reduction box, then the upper roll could perform vertical movement.
5.Unloading equipment can help operater take out finished products.
6.Worm gear box is sealed, worm gear immersed in oil, reducing its friction, increasing the life of the worm gear.
7.Chassis is machined through planer to improve the accuracy of the rolling process.
MAIN TECHNICAL DATA

Item		Unit	8*2000 empty	8*2000 Solid	8*2500 empty	8*2500 Solid	12*2200 empty	12*2200 Solid	12*2500 empty	12*2500 Solid
Max thickness plate		mm	8	8	8	8	12	12	12	12
Max width plate		mm	200	2000	2500	2500	2200	2200	2500	2500
Dia of upper roller		mm	180*20	170	180*20	200	245*18	200	273*18	220
Dia of side roller		mm	168*15	150	168*17	170	219*15	180	245*17	180
Centerline spacing		mm	290	280	300	350	370	370	390	390
Loaded mini winding Dia		mm	400	400	700	700	700	700	900	900
Motor power		KW	5.5	5.5	7.5	7.5	7.5	7.5	11	11
Main reducer type			350	350	350	350	350	350	350	350
Oil pump motor power		KW	3	3	4	4	4	4	4	4
Vice reeducer type			200	200	200	200	200	200	250	250
Dimension	L	mm	3300	3300	3800	3800	3350	3350	3900	3900
	W	mm	1100	1100	1100	1100	1100	1100	1100	1100
	H	mm	1100	1100	1100	1100	1200	1200	1200	1200

DETAILED PICTURES
We also have European plate rolling machine and Economic rolling machine as follow,Please contact customer service for more information.
VISIT AND TRAINING
GOOD PACKAGE AND SAFTY DELIVERY
FACTORY SHOW
FAQ
1. Q: Are you a manufacturer or trading company ?
A: We are a manufacturer.
2.Q:How about the quality of your machines?
A: Our company is a famous brand in china,through our 19 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
3. Q:What can you provide for after-sales service?
A: 24 hours' online service-- technical support by email or calling
Training how to install and use the machine.
Respect your feedback after receiving the goods.
Provide technical exchanging.
Provide the VIDEO with Install and debug for small and medium size machines if needed.
Oversea install and debug for CNC and other large / heavy and precision equipment.
Engineers available to service machinery overseas.
4. Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
