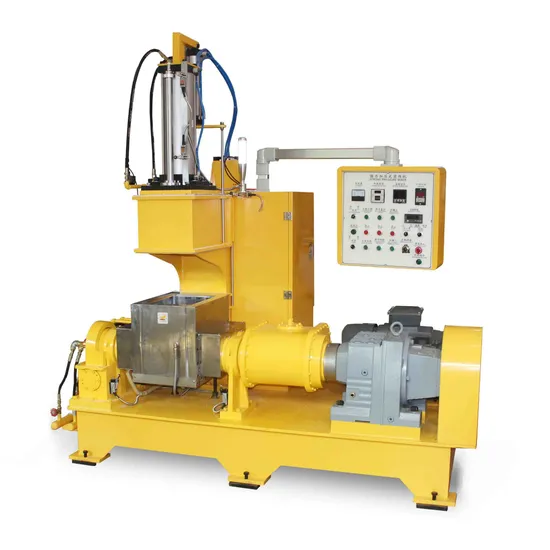

10L Small Rubber and Plastic Dispersion Kneader Internal Mixer

Product Description

Equipment introduction:
The experimental internal mixer is suitable for mixing, kneading, and dispersing various chemical materials such as EVA, rubber, synthetic rubber, hot melt adhesive, etc., and then put the experimental ratio formula into the production line. It is the best mixing equipment for small batch production, proofing, laboratory and school teaching.
Application range:
All kinds of rubber bands, rubber tubes, adhesive tapes, rubber bands, shock absorption equipment, plastic rollers, plastic sponges, tires, plastic soles, oil seals and other miscellaneous silicon plastic parts, footwear, sports balls and other industries.
Mixing of various cable materials, color masterbatches, EVA, PVC, low-smoke halogen-free materials, TPR, cable heat shrinkable tubing, calcification high-filling engineering materials and other chemical raw materials. Plastic magnetic strips/watts, plastic disks, Special equipment for mixing raw materials of metal powder such as iron oxide and stainless steel powder.
Working principle:
The two rotors in the mixing chamber rotate relative to each other under a certain speed ratio. The material from the feeding port is entrained into the roll gap and is squeezed and sheared by the rotor. After passing through the roll gap, it encounters the sharp edge of the mixing chamber "W" and is divided into The two parts respectively return to the top of the rotor along the gap between the front and rear chamber walls and the rotor. The materials are inside the closed mixing chamber, under certain pressure and temperature conditions, carry out strong shearing and mixing, so that the formula materials are fully dispersed and plasticized, so that the formula can exert the best effect.
Technical Parameter:

XH-420-10L
Mixing Volume	10L or designed
Control Mode	Key control/PLC control (optional)
Drive Motor	11KW
Flip Motor	0.75KW
Rotor Speed(front and rear)	40r/30min (speed adjustable)
Flip Angle	110ºC
Air pressure	0.3-0.5mpa
Volume(H*W*D)	1900*1300*1500mm
Weight	1500kgs
Power Supply	3∮, AC380V

Control Panel: Mixing Rotors:
Our Factory:
Our Workshop:

Our Display Room:
Our Client's Laboratory:

---
