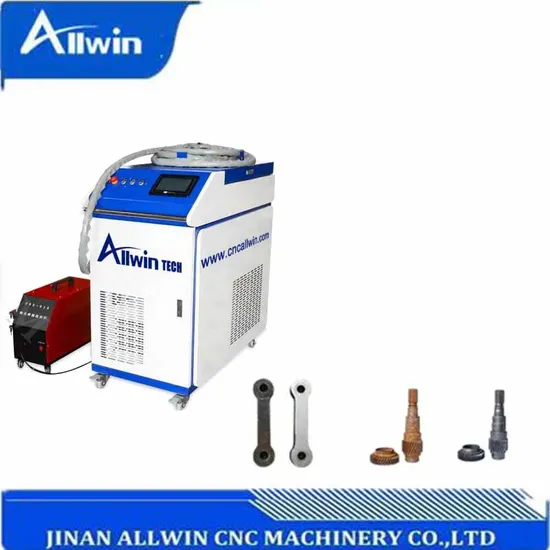

Continuous Laser Welding Rust Removal Derust Handheld Fiber Laser Cleaning Machine

Product Description

Product Description
China Manufacturer Manual Portable Laser Cleaing Machine for Rust Removal
The handheld fiber welding machine is an efficient and precise welding method using a high energy density laser beam as a heat source. Handheld fiber laser welding machine is mainly composed of a laser unit and a welding unit, while taking into account the flexibility, efficiency and high weld quality of laser welding. It can effectively weld carbon steel, stainless steel, galvanized sheet and other metal materials, suitable for tailor welding, stitch welding, inner and outer fillet welding, arc welding, and irregular shape welding.It is composed of laser generator, refrigeration system, control system, handheld welding head and wire feeder.
Product Features
★High energy density, low heat input, small amount of thermal deformation, and narrow melting depth in the heat and heat affected zone of the melting zone.
★The cooling rate is high, so that the weld structure can be fine and the joint performance is good.
★ Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly improving work efficiency.
★The weld is fine, the penetration is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
★ No consumables, small size, flexible processing, low operating and maintenance costs
★The laser is transmitted through the optical fiber and can work with the assembly line or the robot.
★ The touch switch is equipped with a safety clip, and the laser beam can only be emitted when the welding nozzle touches the metal.
★ Red light positioning is used to verify the position during welding.

Machine Model	AW-1000W	AW-1500W	AW-2000W
Laser Power	1000W	1500W	2000W
Laser Wavelength	1064-1080nm	1064-1080nm	1064-1080nm
Welding Depth	2mm	4mm	7mm
Modulation Frequency	20-20kHz	20-20kHz	20-20kHz
Energy Stability	<3%	<3%	<3%
Blowing Protection	Argon/Nitrogen	Argon/Nitrogen	Argon/Nitrogen
Electricity Demand	AC 220V/50Hz	AC 220V/380V/50Hz	AC 220V/380V/50Hz
Machine Power	5.6KW	7.1KW	9.1KW
Cooling System	Water	Water	Water
Dimension	1130x590x1200mm	1130x590x1200mm	1130x590x1200mm
Weight	230kg	230kg	230kg

Product Application
The handheld laser welding machine can be widely used in the complicated and irregular welding processes of cabinets, kitchens and bathrooms, stair elevators, shelves, ovens, stainless steel door and window guardrails, power distribution boxes, stainless steel home appliances and other industries.it has the advantages of simple operation, beautiful welding seam, fast welding speed and no consumables.
It is used in thin stainless steel, iron, For welding of metal materials such as galvanized sheet,
it can perfectly replace traditional argon arc welding, electric welding and other processes.
Detailed Photos
LASER WELDING SOURCE
IPG FIBER LASER WELDING SOURCE AND WATER CHILLER
WOBBLE LASER HEAD

Compared with traditional ones
Compared with Other Welding(What advantage for Fiber laser welding machine)

Comparison item	Traditional welding	Laser welding	laser new generation laser welding
Heat input to the workpiece	Very high	Low	Low
Deformation of the workpiece, undercut	Big	Small	Small
Bond strength with base material	Generally	Good	Very good
Subsequent processing	Polished	No sanding, or little sanding	No sanding, or little sanding
Welding speed	Generally	More than 2 times of argon arc welding	More than 2 times of argon arc welding
Applicable materials	Stainless steel. Carbon steel. Galvanized sheet	Stainless steel. Carbon steel. Galvanized sheet	Stainless steel. Carbon steel. Galvanized sheet
Consumables	Many consumables	Less consumables	Less consumables
Operation difficulty	Complex	Generally	Simple
Operator safety	Not safe	Safety	Safety
Environmental protection impact	Not environmentally friendly	Environmental Protection	Environmental Protection
Welding fault tolerance	Good	Not good	Good
Weaving welding	None	None	Have
Adjustable light spot width	None	None	Have
Welding quality comparison	Difference	Generally	Very good

Comparison of handheld laser welding and argon arc welding: 1. Energy consumption comparison: Compared with traditional arc welding, hand-held laser welding machine saves about 80%~90% of electric energy, and the processing cost can be reduced by about 30%.2. Welding effect comparison: laser hand-held welding can complete dissimilar steel and dissimilar metal welding. The speed is fast, the deformation is small, and the heat affected zone is small. The weld seam is beautiful, smooth, no/less porosity, and no pollution. The hand-held laser welding machine can perform micro-small parts and precision welding.3. Comparison of follow-up processes:When laser hand-held welding, the heat input is low, the deformation of the workpiece is small, and the beautiful welding surface can be obtained without or only simple treatment (depending on the requirements of the welding surface effect). The handheld laser welding machine can greatly reduce the labor cost of the huge polishing and leveling process. Company Profile

Established in 2017, ALLWINCNC are a manufacturing company specializing in the production of plasma and laser consumables.We want to build long-term relationships with customers rather than developing one-off deal.
We want to build long-term relationships with customers rather than developing one-off deal.
The core idea of ALLWIN is our commitment to achieving mutual success for our customers, shareholders, and employees through collaboration.
FAQ
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across
the world. We need your machines running in order to keep your business running.
2),Q: I am not sure if this machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting/welding thickness,
then I will recommend you the most suitable machine for you.
3),Q: Are you factory or trading company?
A: We are factory, which manufactures CNC cutting/welding machines , with 13 years experience.
4)Q. When I got this machine, but I don't know how to use it. What should I do?
Operation video and manual will be sent together with machine. Our engineer will do training online.If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

---
