Star Agricultural Equipment Farm Tractor Trailed Hydraulic Offset Heavy Duty Disc/Disck Harrow

US$1,800.00
1-9 Pieces
US$1,600.00
10+ Pieces

Basic Info.

Model NO.
LSBB
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Color
Blue
Transport Package
Iron Net Box Package
Specification
1.8m-5.3m
Trademark
LIANSHENG
Origin
Dezhou
HS Code
843221000
Production Capacity
10000set/Year

Product Description

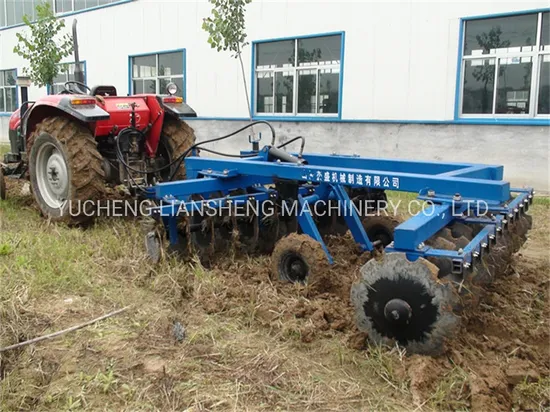

Star agricultural equipment farm tractor trailed hydraulic offset heavy duty disc/disck harrow LSBB series of heavy duty disc harrow was designed according to the Europe standard .it adopts the features on hydraulic offset modular structure, built-bearing composite design, reasonable structure, bearing seal, long life, durable, easy to transport, easy to adjust, and easy maintenance. This heavy duty harrow also can be used to clean the stubble before tillage, break the hardened and impervious soil surface, crush and spread straw into the field, shatter soil after tillage, and level the land and preserve soil moisture. It can be used as tillage machine instead of plow on the cultivated land.
It is a trailed hydraulic offset disc harrow for 80-200hp tractor such as YTO,JOHNDEER tractor.
This hydraulic trailed heavy disk harrow is designed in the standard, of Europe.
With high strength, good seal, the advantages of long life products.
More strong harrow frame and to be in long working life.
Unique design of bearing assembly can keep good seal.
The disc blades are for 65Mn steel and the diameter of plough disc can be 710x8mm.
Model Unit LSBB-2024 LSBB2428 LSBB2834
Working width mm 2400 2800 3400
Working depth mm 200/240 200/240 200/240
Q'ty of disc 20 24 28
Tires 7.50-16/11L-15 7.50-16/11L-15 11L-15/400/60-15.5
Total weight kg 1800/2000 2100/2350 2400/2700
Matched power hp 80-120 120-160 160-200
Linkage Trailed(trailed hole diameter 38mm) ;
Hydraulic output 1 type(difunctional oil cylinder),oil connection in 1/2" thread

The items selectable

710*8 disc blade; oil connection (M22*1.5/M20*1.5/M18*1.5)


RFQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance
,balance before shippment.
If you have another question, pls feel free to contact us as below: Contact: Allen Gao

Web:lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China
