Product Details
Product Description
Product Description
Product Description

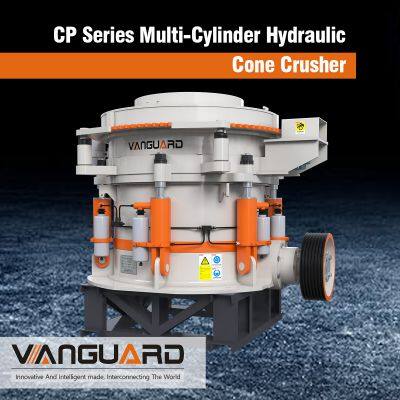

CP series multi-cylinder hydraulic cone crusherhas a variety of the crushing cavity types for selections. By choosing appropriate crushing cavity type and eccentricity, CP series multi-cylinder hydraulic cone crusher can fulfill the production requirements of our customers and achieve lager capacity. CP cone crusher is an advanced cone crusher developed by absorbing the world advanced crushing technology. It can crush materials with middle and high hardness, such as, metal ore, basalt, granite, limestone, cobblestone, sandstone and so on.
STRUCTURE AND COMPOSITION
PRODUCT PARAMETERS
Model
| Cavity
| Max. Feed Size (mm)
| Min. Discharge Port Size (mm)
| Motor Power (KW)
| Closed Edge Material-discharging Port( mm)
| Output
(TPH)
|
CP100
| C
| 135
| 16
| 75-110
| 16-32
| 75-130
|
M
| 105
| 16
| 75-110
| 16-32
| 55-110
|
CP200
| C
| 185
| 19
| 110-160
| 22-38
| 180-310
|
M
| 145
| 17
| 110-160
| 19-38
| 145-280
|
F
| 70
| 13
| 110-160
| 13-32
| 90-165
|
CP300
| C
| 210
| 22
| 185-220
| 19-38
| 210-430
|
M
| 185
| 19
| 185-220
| 19-38
| 190-350
|
F
| 90
| 16
| 185-220
| 16-32
| 135-220
|
CP400
| C
| 290
| 25
| 220-315
| 25-45
| 295-550
|
| M
| 210
| 22
| 220-315
| 19-32
| 265-410
|
| F
| 110
| 16
| 220-315
| 16-32
| 155-256
|
The above capacity is based on 1.6T/m³ material density under open circular crushing plant.The capacity is related to physical properties of the crushing material, feeding size and its composition, and the actual capacity may be different due to different condition.
|
PRODUCT ADVANTAGES
The main shaft is fixed and the eccentric sleeve rotates around the main shaft, which can withstand greater crushing power. Reasonable eccentricity, cavity type and motion parameter coordination greatly improve production capacity and work efficiency.
Adopting layer compression crushing principle, so that the crushing occurs between the materials, the crushing efficiency is high, and the grain shape is excellent. It is the best choice for the production of high-quality aggregates.
Electric adopts Siemens PLC and touch screen control system, ABB low voltage control components, Siemens high voltage motor; double lubricating oil pump, double electric heater, double air cooler, and realizes automatic intelligent control.
Convenient operation and maintenance, adding automatic functions such as lubrication return oil flow monitoring, horizontal shaft speed monitoring, vibration monitoring, automatic feeding control, etc., extending the service life of the equipment.
Processed Materials:
Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble, etc.
CUSTOMERS' SITE
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, mineral processing machine, EPC general contract project, etc. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular manufacturer in global mining industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
All of our products have passed ISO9001-2008 international quality management system certification, European CE certification and Russia GOST certification, and our company has established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fields.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most suitable proposal based on raw materials.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
