Cushion Pillow Duvet Fluffy Product Compress Packing Sealing Machine

Product Description

Machine introduction of the pillow vacuum compress packing machine:
This machine mainly used to vacuum sealing and packing the filled product, when the vacuum package is open, the product will restore. The advantage of this machine is to reduce the package cost and the transportation cost. The users can adjust the temperature to reach the best sealing effect for different thickness bags. This machine is widely used in different product.
Machine operation of the pillow vacuum compress packing machine:
1.Connect the air source, turn on the power switch, the power light is on; if the power light is off, check the power connection is correct or not.
2.Adjust the compression proximity switch position, pre-adjust the heating time and cooling time.
3.Choose the Manual gear of the Manual / Auto, Start compression (start foot switch), compression cylinder began to move down, if there is a problem you can release the foot switch, cylinder jacket reset.
Compression cylinder reaches to the compression proximity switch position, compression proximity switch light bright, compression will self-locking, then release the foot switch, the cylinder jacket will not reset, you can press the reset button to reset.
4.Check compression products no problem,After a few test pressure can choose manual automatic for automatic transmission, start the compression foot switch can complete the entire compression process, without the need to start sealing the foot switch, which can improve work efficiency. start the sealing foot switch, sealing cylinder will press and began to seal the next process: heat --- cooling --- all mechanical reset, which complete a complete compression process.
5.After a few testing packing, the user can choose Manual / Auto for Auto, then start the compression foot switch can complete the entire compression process, without the need to start sealing the foot switch, which can improve work efficiency.
Technical parameter of the pillow vacuum compress packing machine:

Model	ASL-SZD80*80	ASL-SZD80*100	ASL-SZD100*135
Power	1.5kw	1.5kw	1.5kw
Working plate	800*800mm	800*1000mm	1000*1350mm
Pressure	200-800kg	200-800kg	200-800kg
Machine weight	250kg	300kg	450kg
Machine size	1150*1100*1950 mm	1350*1100*1950 mm	1700*1100*1950 mm

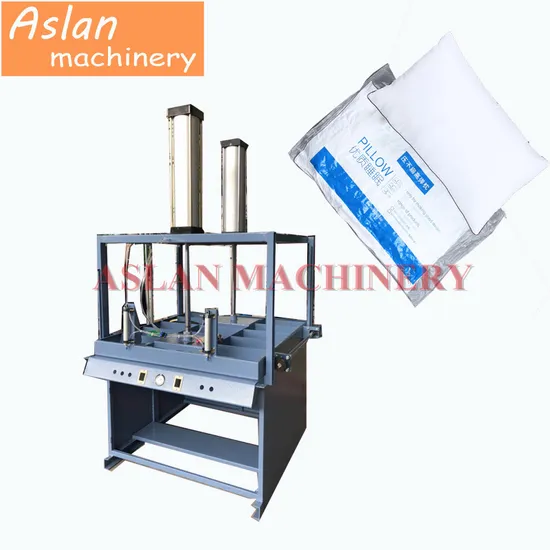

Machine photo of the pillow vacuum compress packing machine:
Final product show:

---
