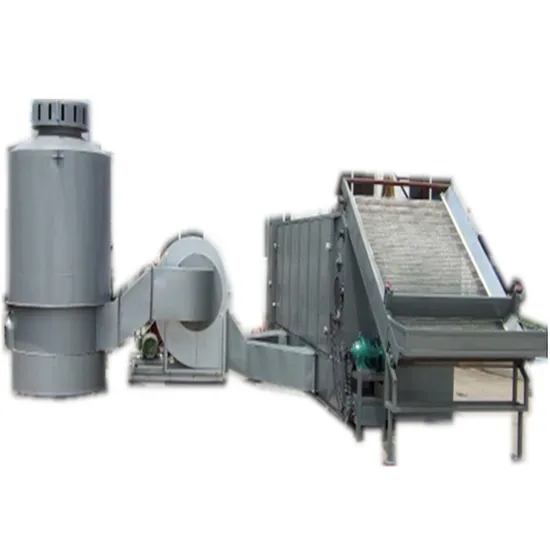

Carrot Continuous Conveyor Mesh Belt Tunnel Dryer Drying Machine

Product Description

Continuous Conveyor Mesh Belt Tunnel Dryer Drying Machine
Product Description
Multiple Layers Conveyor Belt Tunnel Drying Machine Dryer
1.Raw Material:All kinds of vegetables and fruits,etc.
2.Output capacity:100-1000kg/h
3.Heating Type: Gas, Electric, Fuel, Steam, etc
4.Power:10-35kw.
5.Main Machine material: Food Grade Stainless Steel
6.Layers Quantity: 1-7 layers
7.FOB Price Budget: USD16,000-65,000
8.After-sales Service Provided:Engineers available to service machinery overseas
9.Warranty:1 Year
This conveyor mesh conveyor belt dryer is a continuous convective drying processor of which the drying of product takes place on ventilated conveyor belts.After wet material is evenly fed onto the top layer of drying belt via the belt conveyor feeding system, the moving drying belt will transport the wet material to the other end an drop onto the beneath layer drying belt. The beneath drying belt then transports the wet material and moves in opposite direction until dropping onto the third layer of drying belt. At the same time, hot air will be evenly blown into the dryer via the bottom air distributor. With the help of exhaust fan, the hot air will penetrate the wet material on each layer of drying belt for heat transfer and take away the evaporated moisture. When wet material reaches the bottom drying belt, it will be dried for discharging.
1. Wide applications: Multi belt dryer is specially designed for drying those wet material which need long residence time. The residence time of this multi belt dryer is adjustable from 1 hour to 5hours based on the required drying technique.
2. Energy-saving: The multilayer drying belts are completely installed inside a well insulated drying chamber which can considerably reduce heat loss. The hot air is blown into the belt dryer from the bottom and then penetrates through each layer of wet material which can enhance heat transfer and reduce heat loss in exhaust gas.
3. Easy operation and maintenance: The whole drying system is highly automatic. The simple but practical design (The dryer only use one blower and exhaust fan) can not only reduce production cost but also the maintenance and repair cost.

Detailed Photos
Product Parameters
Multiple Layers Conveyor Belt Tunnel Drying Machine Dryer

Model	Belt Width	Heating Type	Layers No.	Length	Capacity Kg Per Batch	Function
ST-DWD0	400-1800mm	Electric, Steam, Gas, Diesel,Coal,Wood, Nuts Shell,etc	1-7layers	3000 -11000mm	50-1000kg/hr	Drying and Baking

Installation Instructions
Continuous Conveyor Mesh Belt Tunnel Dryer Drying Machine
