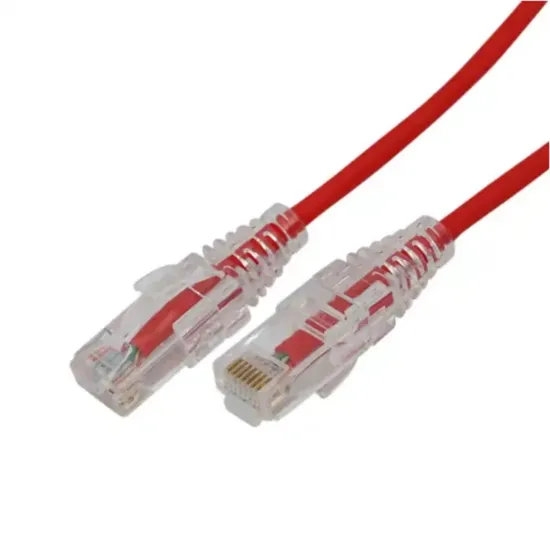

Computer RJ45 Jumper Bare Copper CAT6 CAT6A FTP Network Patch Cord Cable

Product Description

Super slim cat6A STP FTP RJ45 Network Ethernet Patch Cord cable manufacturer 26AWG Cat6 OEM Bare Copper cat 6 Stranded Patch Cord PVC LSZH 1m 3m 10m 30m Electrical Specifications

Max. Conductor DC Resistance (Ω/km)							148
Min. Insulation Resistance (MΩ-KM)							5000
Dielectric Strength							DC-1KV/1 Min
1.0-250MHZ Characteristic Impedance(ohms)							100Ω±15Ω
1.0-500MHZ Delay Skew(ns/100m)							≤45
Pair to Ground Capacitance Unbalance(Pf/100m)							≤330
Resistance Unbalance between pairs (%)							≤4
Max Mutual Capacitance (nF/100m)							5.6
Max DC Loop Resistance(Ω/100m )							19.2
Before Aging			Tensile Strength(Mpa)				≥13.5
			Elongation(%)				≥100
After Aging 100ºC*24h*7d			Tensile Strength				≥75%
			Elongation(%)				≥50
Velocity of Propagation NVP							78%

Technical Specifications

Conductor Material						Stranded Bare Copper
Conductor Number						8C(4 pairs)
Cable AWG						26
Construction(±0.01mm)						7/0.16
Shield Overlap						aluminum/polyester ≥25%
Braid Shield 16/5/0.12 Coverage						Aluminum Magnesium Alloy wire ≥40%
Insulation		Material				SKIN-FOAM- SKIN
		Nom. Thickness(mm)				0.26
		Diameter(±0.05mm)				1.0
Jacket		Material				LSZH/PVC
		Nom. Thickness(mm)				0.50
		Diameter(±0.30mm)				6.2

Features

. Flexible 26AWG stranded cable . Molded boot

. Soft latch-cover design for easy installation . Backward compatible with Cat 6A distribution

Applications

. 10BASE-T (IEEE 802.3)

. 100BASE-T (IEEE 802.3) . 100BASE-VG-AnyLAN

. 1000BASE-T (Gigabit Ethernet) . 10G BASE-T

. 4/16 Mbps TOKEN RING (IEEE 802.5) . 100 Mbps TP-PMD (ANSI X3T9.5) . 55/155 Mbps ATM . 1.2 Gbps ATM

Industry Standards

. ANSI/TIA-568-C.2 IEC 61156-5

. EN 50288-10-2

. EN 50173

. ISO/IEC 11801

. EN 50575

. RoHS

Applications

. All cable 100% channel testing, any open, miswiring, short and intermittent are not permitted

. After crimping the distance between the bottom of contact and the top surface of plug are 5.90-6.146mm.

. The cable must be tested and passed the channel test with Fluke DSX-8000.

. Rohs compliant PVC or PE or LSZH Jacket. . Installation temperature: -20ºC to +75ºC, minimum bending radius: 8D

Packaging

NO.	Item	QTY		Description
1	RJ45 PLUG	2 PCS		RJ45 8P8C Contact, Phosphor Bronze 3u ″, UL94V-2.
2	CABLE	1 PCS		CAT6A S/FTP 26AWG(7*0.16MM)*4P Stranded Cable Jacket, OD: 6.2±0.2MM
3	OVERMODE	/		48P PVC

Company's Profile
In the past 12 years, TELEMAX has established long term business relationship with many big companies such as Telia, Egypt Telecom, D-Link, Amphenol, Huawei, etc, with products shipped out to more than 80 countries in the worldwide.TELEMAX products include Copper system products as below:
Lan cable: Cat5e, Cat6,Cat6a lan cable, UTP , FTP, F/FTP, S/FTP. All of our lan cables with pure copper conductor, pass Fluke perm link test and network analyzer test. Accept OEM
Patch cord: Cat5e, Cat6,Cat6a patch cable, UTP , FTP, F/FTP, S/FTP. All of our patch cables with pure stranded copper conductor, pass Fluke Channel Test, accept OEM
Patch Panel: 12 - 48 Ports, UTP and FTP, 0.5U/1U/2U, Fluke test. accept OEM
Keystone Jack: Cat5e/Cat6/Cat6a, UTP and FTP, 90 Degree, 180 degree, Tool-Free Type. High-end design with higher performance.
Faceplate: 86Type/US Type/ British Type, /French Type.
Cable manager: 1U/2U, Single Side and Double Side, Plastic and Metal Type.
And fiber cabling products include below items:
Fiber Cable : Indoor, outdoor, FTTH Drop cable.
Fiber cord: with connector LC/SC/FC/ST/E2000/MTP
ODF: Rack mount, wall mount, Terminal Box
Fiber enclosure: Dome & Inline Type. From 12- 144 Core
FAQ
Q1- Are your manufacturer or trading company ?A1- We are Factory with ISO9001-2015 and ETL Certification , it verified by Intertek . Q2- Can I negotiate the prices ?A2- Yes, we can provide better discount for valued customers. Q3- Can you do OEM service ?A3- Yes, we can print your LOGO on the products. Q4- How about your delivery time ?A4- Generally, it will take 3-5 working days. The specific delivery time depends on the items and the quantity of your order. Q5- How to guarantee the quantity ?A5- Our products are manufactured strictly in terms of ISO9001-2015 and we provide high-quality and reliable products. Q6- What if there is quality problem when we received the goods ?A6- We will Return the payment or Re make the order if it's our production quality problem.Our engineers will provide best
solutions on any of quality feedbacks. Q7- Can you provide free samples ?A7- Yes, we can provide free samples, some high value samples cost can return to customer after order too. Q8- What's your payment term ? A8- T/T 15-30% as deposit, and 70-85% before delivery. We can support Credit to some of valued and familiar customers.
Related ProductsCAT6 FTP PVC Indoor Cable CAT6 FTP PE Outdoor Cable CAT6 FTP PVC+PE Outdoor CableCAT6 SFTP PVC Indoor Cable CAT6 SFTP PE Outdoor Cable CAT6 SFTP PVC+PE Outdoor CableFeel free to contact us for the latest catalogues and quotations!

---
