Product Details
Product Description
Product Description

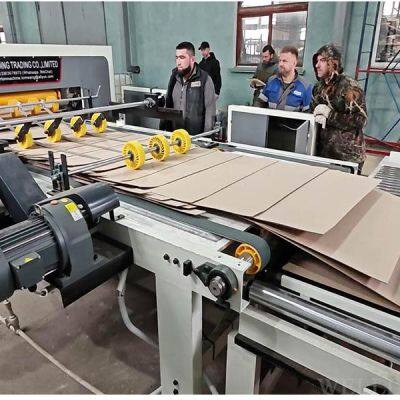

Design speed of fully automatic high-speed cardboard production line: 120m / min,
working speed: 50-90m / min.
Working width: 1300mm.
Suitable for paper: 80g-650g
all kinds of high school grade roll paper.
Heating method: electric heating.
Length of the production line: about 38 meters.
Equipment footprint: 40m×6m×4.5m (length, width and height).
Model: ZY 1100 / 1400 / 1700 / 1900.
Transmission mode: servo drive.
Function: can realize single volume, double volume, four volume segmentation, high segmentation accuracy. Function features of composite grey cardboard production line: multiple layers of drum base paper of different thickness and width can be combined into the required specifications of cardboard. Control mode: using PLC, frequency converter, servo drive communication control, touch screen and button operation. Automatic honeycomb board production line model: ZDFB model. Production speed: 6-20m / min. Maximum width of cardboard: 1300mm. Maximum thickness of cardboard: 6-80mm. Heating mode: electric heating, hot air circulation. Production line process of four four drum composite cardboard machine: including hydraulic paper machine, overpass conveyor, preheating, edge, glue, bonding, compaction, drying, cooling setting, longitudinal cutting, transverse cutting, automatic (artificial) paper collection and other processes. Control mode: using PLC, frequency converter, servo drive communication control, touch screen and button operation.
If you are also interested in this machine,please don’t hesitate to contact us:
Overseas manager: Tom Wang
Email:cartonmachine.tomwang@aliyun.com
Phone/Wechat/Whatsapp:+86 13303078975
>>
