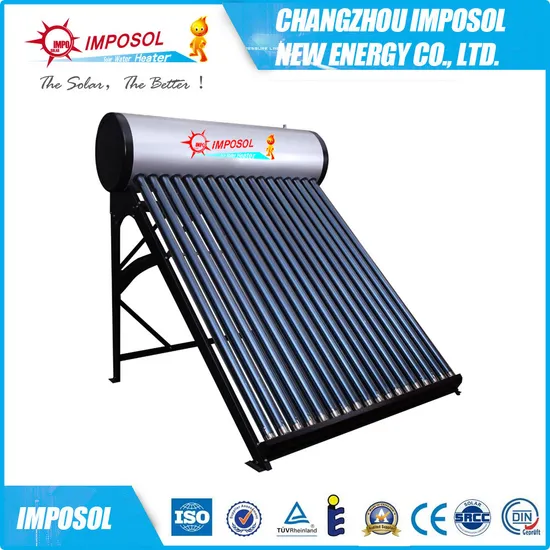

2016new Solar Water Heaters 400L, Solar Water Heater for Household

Product Description

Model	Light Area(m2)	Vacuum Tube			Capacity (Liters)	20GP/40HQ Loading Qty
		Ø(mm)	L(mm)	NO.
IPJG 100 GS	1.4	58	1800	10	100	71/172
IPJG 150 GS	2.1	58	1800	15	150	52/125
IPJG 200 GS	2.8	58	1800	20	200	39/96
IPJG 250 GS	3.5	58	1800	25	250	33/80
IPJG 300 GS	4.2	58	1800	30	300	28/68
IPJG 400 GS	5.6	58	1800	40	400	21/52
IPJG 80 GS	1.12	58	1800	8	80	80/194
IPJG 120 GS	1.68	58	1800	12	120	62/150
IPJG 160 GS	2.24	58	1800	16	160	48/116
IPJG 180 GS	2.52	58	1800	18	180	43/105
IPJG 240 GS	3.36	58	1800	24	240	34/82
IPJG 360 GS	5.04	58	1800	36	360	23/57

Technical Specifications :
Inner Tank : SUS304-2B food-grade stainless steel - 0.4mm thickness , laser welding technology .
Vacuum Tube : High efficient ALN/ALN-SS/CU coating , 58 x 1800mm vacuum tube - 1.6mm thickness , resist 25mm hail .
Outer Tank : Painted galvanized steel - 0.4mm thickness , free-welding technology .
Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .
Frame support : Painted galvanized steel - 1.5mm thickness , anti-corrosive and anti-ultraviolet .
M8 Stainless steel SUS 304 bolts and nuts .
58mm Silicone seal ring and dust ring
Stainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent

Optional accessories :
Aluminum component reflectors
Electrical heater
Magnesium anode rod
Assistant tank - Cold water filling tank
Solar Controller
Company information:
Changzhou Imposol New Energy Co., Ltd.Is located in Changzhou City of Jiangsu Province.Changzhou, a prefecture-level city in Jiangsu province, is located on the southern bank of the Yangtze River near the river mouth.Our company is a professional solar energy company in China which integrates research, manufacture and marketing.In recent years, our products have been well accepted by the European market, Australia, Africa and the Asian market because of high performance and reasonable price.We pay much attention to products' quality and company's credit.
As an OEM factory in China, it specializes in manufacturing solar water heaters and vacuum tubes.We have a workshop covering an area of 6000 square meters with a production capability of 100 thousand pieces of solar water heaters and 1 million pieces of vacuum tubes every year.These products have enjoyed a great popularity among many countries for many years because of their high performance and reasonable price.We have also designed some wonderful solar water projects which use solar collectors with metal vacuum tubes for hospitals, schools, factories and families.Customers either at home or abroad highly praise our projects for their high efficiency and excellent energy-saving system.
As the shortage of energy and pressure of environment pollution appear, the importance of the solar energy is increasing day by day.Thus in order to benefit people, Impose Solar will do its utmost to provide various solar products with high quality and efficiency.
