Hcvac Mould Tools Multi-Functional Plasma Hard Film PVD Chrome Vacuum Coating Machine

Product Description

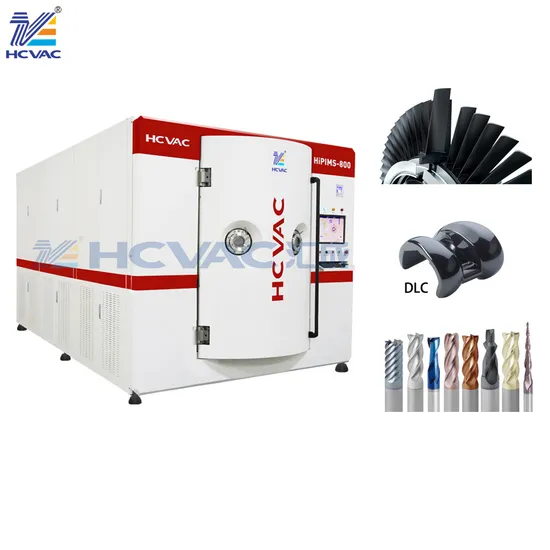

HCVAC Mould Tools Multi-functional plasma hard film PVD chrome vacuum coating machine
Equipment Brief introduction:
This series equipment is designed for hard and super hard protective coatings on cutting tools and mould , It equipped with a plurality of circular ARC cathode evaporation source, Through the double pulse arc controllable magnetic field technology ( PMA II ) to deposit high performance hard film on all kinds of tools, molds and other pieces of structure components. and also can deposit a variety of special film according to customer's requirements.
It most used in precision mould industry(dies, shear mould, standard mould and moulding mould ect), tool industry(drill, inserts, endmills, broaches, screw tap and gear cutter .etc) automobile industry(cylinder piston, piston ring and parts etc)and textile industry(rings, oil needle, rotating shuttle) Main coating composition: Tin, Crn,ALTIN,ALCrn, TiCN, TIAlCrN, TiAlSin, hard film,multilayer coating, Garded coating,Nano coating.
Features
* 1,the machine design structure is easy to understand ,also It's safe and reliable.
* 2,Each coating system can be lowest cost and widely used.
* 3,This system is a "plug and play" deposited system, no need extra cost, system installation is easy and fast, you can get the revenue immediately on the date of machine start to work.
* 4,Our company patented magnetic arc control device, short processing time .
* 5,It can be coated with a variety of film in the same furnace ( optional items), and different coatings can be deposit on the same part without open the vacuum chamber and replacing the target.This operation is easily, safty and reliability , and also easy installation and loading.
* 6, It has remote diagnostic program. our engineer can remote diagnose and solve the problems.
Turnkey project:
* 1,The success of a coated tool or component depends on the optimal interaction of the substrate and coating materials and its required surface quality.
* 2, High substrate quality, a precisely adjusted pretreatment of the substrate surface, the precisely adapted coating as well as a possible pretreatment are key factors for the success of the tool or part when in use.
* HCVAC offers complete turn-key coating systems including all necessary peripheral equipments which from pretreatment (blasitng, microblasting,de-coating), unltrasonic cleaning, coating , post treatment(wet blasting), OQC ,one stop coating line.

Model	HCSH-400	HCSH-650	HCSH-900	HCSH-1200	HCML-520
Effective area	Ф400x H450mm	Ф650x H750mm	Ф900x H1200mm	Ф1200x H1500mm	W320
Max working temperature	550ºC				350ºC
Substrate holder	4 x Ф140	8 x Ф220	12 x Ф220	18 x Ф200	10 trays / batch
Loading capacity	200KG	500KG			Customization
Technology	PMA II , EFC , AEG, RF, HiPIMS				MS, RF, DC,HiPIMS
Pretreatment	Plasma cleaning
Application	Scientific research , semiconductor, tools,moulds,parts and components,medical devices,optical,new energy and other industries
Custom coating	Tool coating, mould coating , parts coating, DLC coating, GLC coating, ta-C coating,etc.
Ultimate vacuum	Ultimate vacuum: ≤5 x10-4 Pa Work vacuum:≤5 x10-3 Pa				8.0×10-5 Pa

Performance after coating:
Application
Machine Category:
Company Profile
Workshop:

Certifications

Packaging & Shipping
Our Advantages
Why Choose HCVAC System?
· Over 3000 plants installed worldwide
· Quick cycle times
· High production capability with low energy consumption
· More up time due to ease of loading/unloading and low maintenance
· High productivity with only a single operator
· Steel process chambers, built to last
· Eco-friendly
· Space saving design
· PVD option available on all plants
· 1 year component warranty and 25 years minimum guaranteed working life
· Complete global network of consulting, engineering and renowned after sales service
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service
team with more than ten experienced engineers.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most
suitable technology according to your requirements.
We will make the full set special coating solution for each customer; combine the full set production technics to meet your
requirements, to ensure high efficiency of production.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Contact US
For more information, please feel free to contact us

---
