Well Selling Wall Panel Machine

Product Description

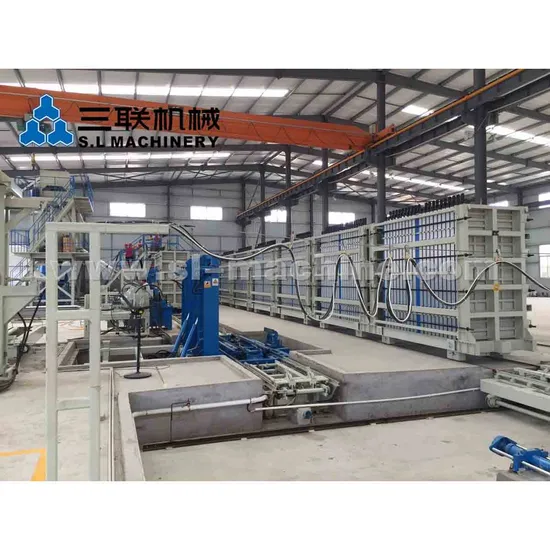

Wall Panel Production Line- Vertical Type
Production LIne
Process of Producing
Material batching → mixing → slurry infusing → molding →automatic demoulding and stacking→ finished product
Production Line Composition
(1) The vertical wall panel production line integrates electrical, hydraulic and mechanical functions.
(2)The wall panel production line mainly includes six systems: batching and mixing, automatic grouting, mold turning, transfer system, finished product maintenance, demoulding and stacking system.
(3)Two working modes: manual and automatic free switching.
(4)The use of advanced industrial PLC, high-precision hydraulic components and compact mechanical structure can achieve safe and stable operation. Technical Parameters
Vertical Type Wall Panel Molding Machine Technical Parameters

Feeding Capacity	5m³
Finished Wall Panel Dimension	2440*600*75mm
	2440*600*90mm
	2440*600*100mm
	2440*600*120mm
	2440*600*150mm
Molding Time	2 Hours (High aluminum cement)
Mould Clearance	≤2mm
Numbers of Pallet Provided per Time	75mm	46PCS
	90mm	40PCS
	100mm	36PCS
	150mm	30PCS
	200mm	20PCS
Installed Capacity	≈65KW
Maximum Pressure of System	≈16Mpa( Vertical Type Overturn Cart)

Advantages
Why Choose Our Wall Panel Production Line? 1. High Molding Output and Efficiency High Output: Our wall panel production line achieves high molding output, ensuring a large volume of products in a short time.
Small Footprint: The equipment is designed with a compact footprint, saving valuable factory space.
Hydraulic Devices: Hydraulic devices installed on the molding machine facilitate efficient squeezing and loosening processes, significantly improving work efficiency.
2. Mold Design and Construction Breathable Holes: The mold is equipped with breathable holes, preventing the hollowing phenomenon in products.
Robust Skeleton: Rectangular tubes are used as the skeleton, and acid-washed plates are welded by robots to ensure the flatness and quality of the products.
3. Adjustable Molding Length Flexible Adjustment: The molding length can be adjusted freely without the need to change the mold, offering great flexibility.
Efficient Mold Installation: Multiple groups of personnel can simultaneously carry out mold installation, reducing mold installation time and further enhancing work efficiency.
4. Diversified Product Range Wide Range of Products: Our production line can manufacture a variety of wall panels, including:
Composite lightweight wall panels
Cement foam wall panels
Ceramic particle wall panels
Hollow wall panels
5. Distinctive Product Features Concave and Convex Grooves: The products are designed with concave and convex grooves around the edges, enhancing the aesthetic appeal and functionality of the wall panels.
Key Features
Main Features: Automatic system, PLC control.
The main electrical components use Siemens.
The wall panel production line can be used flexibly, and can produce solid wall panels, hollow wall panels, wall panels with or without panels.
Different materials can be used to make lightweight wall panels.
The wall panel production line is easy to operate and maintain.
Wall Panel Molding Machine

EPS Lightweight Wall Panel
What is EPS Wall Panel?
Description: EPS lightweight wall panels are sandwich panels with cement boards on both exterior and interior sides, and a core filled with a mix of Lightweight Cement and Polystyrene Beads. This material combination offers flexibility, rigidity, strength, and insulation.
Advantages:
Green and Modern: Replaces traditional red bricks and aerated blocks, meeting modern building requirements.
Versatile Use: Suitable for partition walls in high-rise buildings, exterior walls, and partitions in steel structure prefabricated houses and villas.
Lightweight and Thin: Reduces building weight, increases usable space, and lowers construction costs.
High Strength and Insulation: Provides thermal and sound insulation, waterproofing, and earthquake resistance.
Easy Installation: Can be nailed, sawed, and slotted, making on-site installation convenient.

Light Weight: EPS panels are designed to be lightweight, which reduces the load on structures. Thin Thickness: Despite their strength, these panels have a thin profile, which conserves space. High Strength: EPS panels offer high strength, ensuring durability and stability in construction. Heat Insulation: They provide effective insulation against heat, helping to maintain indoor temperatures. Sound Insulation: EPS panels also serve as a barrier against noise, contributing to a quieter living or working environment. Waterproof and Moisture-Proof: These panels are resistant to water and moisture, protecting the structure from dampness and potential damage. Earthquake Resistance: EPS panels are designed to withstand seismic activity, adding to the safety of the building. Ease of Installation: EPS panels can be nailed, sawed, and slotted, making them easy to install on construction sites. Reduces Building Weight: By using lightweight materials, the overall weight of the building is reduced. Increases Available Space: The thin profile of EPS panels allows for more usable space within the building. Saves Construction Costs: The ease of installation and reduced material needs can lead to significant cost savings in construction projects.

Wall Panel Application Display

---
