Product Description
Product Description

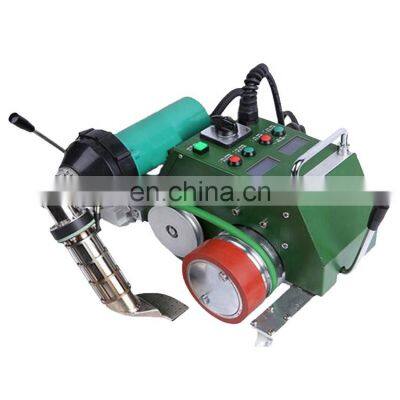

Hot sale Fabric banner Welding Joining Machine
Our company produce many different model welding machine , such as model 4000L , model 3000A , model 4000Z and other high quality model
Product Description
Application
Welding and joining separate pieces made of some hot melting materials . Such as PVC fabic , PE canvas , outdoor poster banner , textile , plastic pieces , and so on .
Technical Parameter
Model
| 4000Z
|
Voltage
| 230V
|
Frequency
| 50/60HZ
|
Power Consumption
| 2100W
|
Adjustable Temperature
| 0-600degree centigrade
|
Range of Speed(m/min)
| 0-10.0 meters/minute
|
Air flow
| 200-270L/Min
|
Time of the Saving Power Mode
| No operation in 15 minutes
|
Welding Width
| 10-50mm
|
Welding Thickness
| 0.5-3mm
|
Operation steps
1.Check the welding nozzle basic setting , and connect the tool to the mains . The mains voltage must correspond with the voltage stated on the cool .
2.Perform a test welding according to the welding instructions of the material , check the test welding . Then adapt the welding temperature as required .
3.Turn hot air blower using positioning lever up to the stop , the outside edge of drive/pressure roller must lone up with the overlap edge of the material to be welded
4.Set temperature and welding speed according to the required value
5.After completing welding work , press the button STANDBY , so that the hot air blower cools down . Then turn off the air blower switch
Maintenance
For safe and effient working , always keep the unit and its ventilation slots cleanClean welding nozzle with wire brushCheck mains connection and plug for electrical and mechanical damage
Packaging & Shipping
1. Packing by wooden box
2 . Packing size : 47cm*35cm*35cm
3. Shipping by express , such as DHL , Fedex or other way .
Our Services
1. Our machine warranty one year
2. When shipping machine , we will provide necessary accessories .
3.We will provide best technical Support .
4. Fast shipping product .
>>
