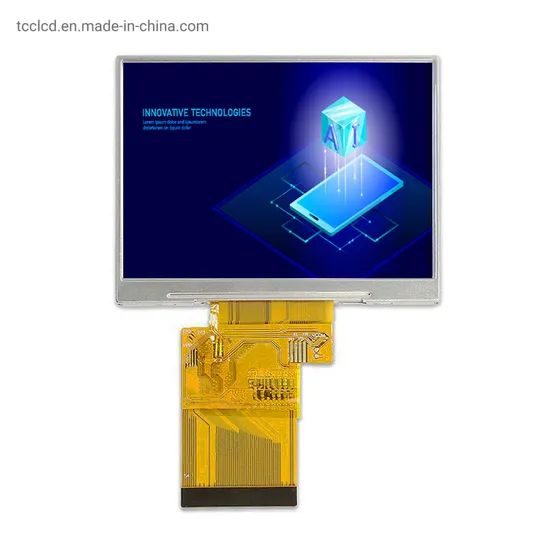

China Supplier 3.5 Inch TFT LCD Screen 320X240 Graphic Color Module TM035kdh03 TFT LCD Display

US$9.90
2-499 Pieces
US$9.80
500-999 Pieces
US$9.70
1,000-2,999 Pieces
US$9.60
3,000+ Pieces

Basic Info.

Model NO.
SYC035KDH03
Aspect ratio
4:3
Feature
Touch Display, LED Backlight Display
Optimum Resolution
320*240
Type
TFT
Response Time
25ms
3D
Not 3D
Interface Type
RGB/Ccir656/601
Viewing Direction
12 O′clock
Outline Dimensions
76.9*63.9*3.15 mm
Visual Area
71.08*53.56mm
Active Area
70.08*52.56mm
Technology Type
a-Si
Display Mode
Tn,Normally White Display,Transmissive
Driver IC
Nt39016/Nv3035
Luminance
350 CD/M^2
Contrast
500:1
Logic Voltage
3.0~3.3V
Touch Screen
Optional
Operating Temp
-20ºC~+70ºC
Storage Temp
-30ºC~+80ºC
Pin Counts
54 Pin
Transport Package
Carton
Specification
438*386*348mm
Trademark
TCC
Origin
China
HS Code
8531200000
Production Capacity
33170

Packaging & Delivery

Package Size
7.69cm * 6.39cm * 0.32cm
Package Gross Weight
0.080kg

Product Description

China supplier 3.5 inch tft lcd screen 320x240 graphic color module TM035KDH03 tft lcd display
Product Description
Detailed Photos Applications Our products are used in a wide range of applications, such as electronic equipment, medical equipment, industrial equipment and smart home.
Packaging & Shipping Choose a suitable electrostatic packaging bag according to the size of the product, and use an airplane box with foam to ensure that the product is not damaged during transportation.
Production Quality The company has advanced manufacturing equipment,always adhere to the "Quality First" and strictly control the production process, the product after high temperature aging 100% inspection of qualified shipments.
Certifications We have a complete quality management system and have passed ISO9001:2015, SGS,TUV,BV, RoHS, and other certifications.
Company Profile TCC has been established for 18 years and has always believed in humanistic care. we has built a stable and excellent work team to provide customers with satisfactory services
FAQ Q: Are you a trader or a factory?A: We are a manufacturer with our own trademark and production workers.Q: Can you customize the product?What are the requirements?A: Products can be customized, generally there is a MOQ.Q: Are you open to OEM processing? A: Yes, we can.Q: Can you provide drawings and program files?A: Yes, we can provide drawings and procedures for customers to confirm.Q: How do you control product quality?A: The product has been fully inspected by high temperature, aging, testing, appearance and other procedures, and has passed ISO9001, SGS, TUV, BV, RoHS and other certifications.Q: How long is the product warranty and service?A: This product is valid for 1 year and provides lifelong technical support.Q: Is the product in stock? How long is the production cycle?A: Some regular finished products are in stock. Small batch production is 1 week and large batch production is 2 weeks.Q: What kind of packaging? Will shipping be damaged?A: According to different sizes, choose knife card, aircraft box or blister tray for inner box packaging, and add outer box for protection.
