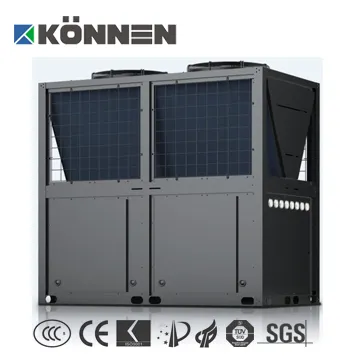

Air to Water Heat Pump High Temperature with High Cop

Product Description

High temperature of air to water heat pump water heater, air source heat pump, heat pump, heat pump water heater, heat pumps, with Copeland compressor and R134a refrigerant, lowest working temperature can reach -15 deg C, max. water output temperature 80 deg C.

* Copeland compressor & R134a refrigerant;

* Stainless steel 304 for all fasteners, for side covers of evaporator;

* Preservative oil for copper tubes and all important part of cabinet;

* Chinese No.1 brand "ND" shell & tube heat exchanger;

* Japan "Saginomiya" or "Sanhua" electronic expansion valve;

* "Sanhua" 4-way valve;

* "Schneider" AC contactor & Relay

* KONNEN LCD controller;

* Delivery time: 25~30 days;

* Payment term: T/T 30% in advance and T/T 70% before delivery;

* Warranty time: 24 months after delivery.

KONNEN NEW FACTORY(HEAT PUMP + WATER TANK + CONTROLLER):
WHY US:
KONNEN NEW PROJECTS:
WORLD FAMOUS BRAND WE COOPERATED FOR OUR HEAT PUMPS:
HEAT PUMP LOADING:
PRODUCT FEATURES:
PARAMETERS TABLE:

A03H (High temperature of air source heat pump water heater circulation type)
			HT3Ps-T3	HT5sP-T5	HT3P-T3	HT5P-T5	HT7P-T5	HT10P-C24	HT14P-C24	HT20P-C48	HT24P-C48	HT30P-C48	HT36P-C48	HT48P-C96
Rated heating capacity		kW	8	13.5	8	13.5	18	26	35	55	65	80	95	130
Rated input power		kW	2.2	3.65	2.19	3.66	4.96	7.11	9.62	14.91	17.81	21.98	26.03	35.81
Rated input current		A	9.58	15.9	4.14	6.92	9.37	13.55	18.17	28.17	33.66	41.54	49.19	67.69
Maximum input power		kW	2.86	4.75	2.74	4.58	6.20	8.89	12.02	18.63	22.26	27.47	32.53	44.77
Maximum input current		A	14.92	24.77	5.34	8.92	12.09	17.33	23.44	36.33	43.41	53.57	63.44	87.29
Performance coefficient(COP)		/	3.63	3.69	3.65	3.69	3.63	3.65	3.64	3.69	3.65	3.64	3.65	3.63
Rated hot water output temp.		ºC	75
Maximum hot water output temp.		ºC	80
Rated hot water produce capacity	△t40	L/H	172.0	290.2	172.0	290.3	387.0	559.0	752.5	1182.5	1397.5	1720.0	2042.5	2795.0
	△t60	L/H	114.7	193.5	114.7	193.5	258.0	372.7	501.7	788.3	931.7	1146.7	1361.7	1863.3
Power supply			1N 220V/50Hz		3N 380V/50Hz
Compressor	Type		Hermetic scroll type
	Start Mode		Directly start
	Quantity	Set	1	1	1	1	1	2	2	4	2	3	3	4
Water side heat exchanger	Type		Shell & coil(tube) heat exchanger
	Water flow	m3/h	1.4	2.3	1.4	2.3	3.1	4.5	6.0	9.5	11.2	13.8	16.3	22.4
	Water Pressure Drop	kPa	≤45	≤53	<50	<55	<57	<60	<60	<65	<65	<65	<65	<65
	Pipe size	mm	DN20	DN25	DN20	DN25	DN25	DN32	DN32	DN50	DN50	DN50	DN65	DN80
Protections			1. High pressure and low pressure protection, 2. Anti-freezing protection, 3. High temperature protection, 4. Too big of the water temperature difference for outlet and inlet protection, 5. Overload protection, 6. Lack phase protection, 7. Reverse phase protection, etc..
Refrigerant	Type		R134a
	Throttle Type		Electronic expansion valve
	Quantity	kg	2.1	3.3	2.1	3.3	4.3	2.8×2	4.1×3	3.2×4	7.6×2	6.2*3	7.6×3	7.6×4
Noise		DB(A)	≤55	≤63	≤55	≤63	≤65	≤65	≤68	≤70	≤72	≤73	≤74	≤78
Dimension		mm	700×680× 875	860×820× 1080	700×680× 875	860×820× 1080	860×820× 1080	1000×1000× 1858	1000×1000× 1858	1000×2050× 1900	1000×2050× 1900	1000×2050× 1980	1000×2050× 1980	2000×2050× 1980
Net Weight		kg	100	170	100	170	190	310	410	605	650	835	840	1250
Testing conditions:
1. Application side initial water temperature: 15ºC, end temperature 75ºC, max. temperature 80ºC.
2. Ambient temperature dry bulb 20ºC, wet bulb 15ºC.
The above parameters are based on Refrigearnt R134a, for parameters based on other refrigerant please contact us.
The above parameters may have some differences from the final product because of products updating, so above information is not the provision of any business contract. Please refer to final product label when buy, or refer to us for any information. Our company keeps the right to interpret.
