OEM ODM Cardan Transmission Tractor Parts Plastic Sleeve Clutch Limiter Pto Drive Shaft for Agriculture Machinery

Product Description

OEM ODM Cardan Transmission Tractor Parts Plastic Sleeve Clutch Limiter Pto Drive Shaft for Agriculture Machinery
Product Description

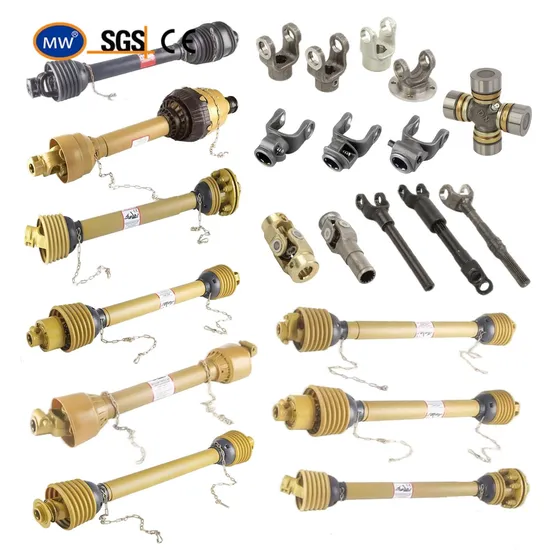

The PTO drive shaft from Hangzhou Ocean Industry Co., Ltd. is compatible with various brands of agricultural machinery, particularly tractors. It facilitates power transmission in modern agricultural equipment, commonly connecting tractors to implements or within the machinery itself for smooth operation. The shaft boasts universal transmission capabilities and adjustable structure for different models. Most of our OEM customers usually send their drawings, if you have special request, send us your drawing or send us sample it is also OK.
Key Features:
1. Suitable for various agricultural machinery brands
2. Facilitates power transmission in modern equipment
3. Enables normal operation of agricultural machinery
4. Universal transmission characteristics
5. Adjustable structure for different models
A power take-off (PTO) is a method of extracting power from an engine and transferring it to attached implements or separate machines. Our high-quality PTO shaft parts and accessories, including clutches, tubes, and yokes, cater to your tractor and implement needs, offering a wide range of PTO driveline products. Get our top-notch PTO shaft products at competitive rates.

PTO driveshaft:

PTO DRIVE SHAFT T SERIES
Operating torque
Series	540tr./min			1000tr./min			MP (NM)
	Kw	Pk	Nm	Kw	Pk	Nm
T1	12	16	210	18	25	172	320
T2	15	21	270	23	31	220	450
T2	22	30	390	35	47	330	640
T4	26	35	460	40	55	380	780
T5	35	47	620	54	74	520	1050
T6	47	64	830	74	100	710	1450
T7	55	75	970	87	118	830	1800
T7N	55	75	970	87	118	830	1800
T8	70	95	1240	110	150	1050	2250
T38	78	105	1380	123	166	1175	2500
T9	88	120	1560	140	190	1340	2800
T10	106	145	1905	170	230	1650	3500

PTO DRIVE SHAFT L SERIES
Operating torque
Series	540tr/min			1000tr./min			MP (NM)
	Kw	Pk	Nm	Kw	Pk	Nm
L1	12	16	210	18	25	172	320
L2	15	21	270	23	31	220	450
L3	22	30	390	35	47	330	640
L4	26	35	460	40	55	380	780
L5	35	47	970	54	74	520	1050
L6	47	64	830	74	100	710	1450
L32	39	53	695	61	83	580	1200

PTO DRIVE SHAFT S SERIES
Operating torque
Series	540tr/min			1000tr./min			MP (NM)
	Kw	Pk	Nm	Kw	Pk	Nm
S6	47	64	830	74	100	710	1450
S7	55	75	970	87	118	830	1800
S8	70	95	1240	110	150	1050	2250
S38	78	105	1380	123	166	1175	2500
S32	39	53	695	61	83	580	1200
S36	66	90	1175	102	139	975	2000
S9	88	120	1560	140	190	1340	2800
S10	106	145	1905	170	230	1650	3500
S42	79	107	1400	122	166	1175	2500
S48	133	180	2390	205	277	1958	4200
S50	119	162	2095	182	248	1740	3700

PTO DRIVE SHAFT G SERIES
Operating torque
Series	540tr/min			1000tr./min			MP (NM)
	Kw	Pk	Nm	Kw	Pk	Nm
G2	15	21	270	23	31	220	450
G4	26	35	460	40	55	380	780
G5	35	47	620	54	74	520	1050
G6	47	64	830	74	100	710	1450
G7	55	75	970	87	118	830	1800
G8	70	95	1240	110	150	1050	2250
G38	78	105	1380	123	166	1175	2500
G42	79	107	1400	122	166	1175	2500
G50	119	162	2095	182	248	1740	3700

There are thousands of items and hard to list all here, please feel free to send us enquiry by e-mail and then you can get the technical details you want from us.
Yoke

TRIANGULAR YOKE
Series	A(mm)	B(mm)	C(mm)	D(mm)
1.06	22	54	77	32.4
1.07	22	54	77	26.6
2.06	23.8	61.3	82	36.1
2.07	23.8	61.3	82	29
3.06	27	70	90	43.4
3.07	27	70	90	36.1
4.06	27	74.6	90	43.4
4.07	27	74.6	90	36.1
5.06	30.2	80	98	51.3
5.07	30.2	80	98	44.7
32.06	32	76	98	51.3
32.07	32	76	98	44.7
6.06	30.2	92	104	53.6
6.07	30.2	92	104	44.7
7.06	30.2	106.5	117	53.6
7.07	30.2	106.5	117	44.7
7N.06	35	94	106	53.6
7N.07	35	94	106	44.7
36.06	36	89	106	53.6
36.07	36	89	106	44.7
8.06	35	106.5	121	62.7
8.07	35	106.5	121	53.6
38.06	38	105.6	121	62.7
38.07	38	105.6	121	53.6
9.06	41	108	130	62.7
9.07	41	108	130	53.6
10.06	41	118	125	62.7
10.07	41	118	125	53.6

LEMON YOKE
Series	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)
1.06L	22	54	77	30	39
1.07L	22	54		23.7	30.8
2.06L	23.8	61.3	82	41.2	48
2.07L	23.8	61.3	82	34.5	40.1
3.06L	27	70	90	41.2	48
3.07L	27	70	90	34.5	40.1
4.06L	27	74.6	90	41.2	48
4.07L	27	74.6	90	34.5	40.1
5.06L	30.2	80	98	48	57.5
5.07L	30.2	80	98	39.5	49
32.06L	32	76	98	48	57.5
32.07L	32	76	98	39.5	49
6.06L	30.2	92	104	48	57.5
6.07L	30.2	92	104	39.5	49
7N.06L	35	94	106	48	57.5
7N.07L	35	94	106	39.5	49
36.06L	36	89	106	48	57.5
36.07L	36	89	106	39.5	49

STAR YOKE
Series	A(mm)	B(mm)	C(mm)	D(mm)
6.06ST	30.2	92	104	56.8
6.07ST	30.2	92	104	47.4
7.06ST	30.2	106.5	117	56.8
7.07ST	30.2	106.5	117	47.4
8.06ST	35	106.5	121	56.8
8.07ST	35	106.5	121	47.4
7N.06ST	35	94	106	56.8
7N.07ST	35	94	106	47.4
32.06ST	32	76	98	56.8
32.07ST	32	76	98	47.4
36.06ST	36	89	106	56.8
36.07ST	36	89	106	47.4
9.06ST		108	130	67.5
9.07ST	41	108	130	56.8
10.06ST	41	118	125	67.5
10.07ST	41	118	125	56.8
42.06ST	42	104.5	130	67.5
42.07ST	42	104.5	130	56.8
50.06ST	50	118	133	67.5
50.07ST	50	118	133	56.8

There are thousands of items and hard to list all here, please feel free to send us enquiry by e-mail and then you can get the technical details you want from us.
Safty shield:

SHIELD I
Series	Tube(A)		Retainingcollar(B)		Color
	Inner	Outer	Inner	Outer
1	48.5	54	34	40	BI:Black YI:Yellow
2	61	66.5	40	47
3-4	61	66.5	46	53
5	75	81	54	62
06-7-8	75	81	59.5	68.5
42/48/50	90	96	69.5	81.5

SHIELD II
Series	Tube(A)		Retainingcollar(B)		Color
	Inner	Outer	Inner	Outer
1	48.5	54	34	40	BII:Black YII:Yellow YBII:Yellow+Black
2	61	66.5	40	47
3-4	6	66.5	46	53
5	75	81	54	62
06-7-8	75	81	59.5	68.5
42/48/50	90	96	69.5	81.5

SHIELD III
Series	Tube(A)		Retainingcollar(B)		Color
	Inner	Outer	Inner	Outer
1	48.5	54	34	40	BIII:Black YIII:Yellow
2	61	66.5	40	47
3-4	61	66.5	46	53
5	75	81	54	62
06-7-8	75	81	59.5	68.5
42/48/50	90	96	69.5	81.5

SHIELD WA
Series	Tube(A)		Retainingcollar(B)		Wide Angle Shield		Color
	Inner	Outer	Inner	Outer	C	D	BWA:Black YWA:Yellow YBWA:Yellow+Black
4	61	66.5	46	53	117	210
6/32/36	75	81	59.5	68.5	123	225
8	75	81	62.5	72.5	127	245

→→→There are thousands of items and hard to list all here, please feel free to send us enquiry by e-mail and then you can get the technical details you want from us. Packaging & Shipping
Ocean Group Co., Ltd. is a professional group manufacturer of a full range of high-quality products including gearbox, gear, gear rack, chain, sprocket, V pulley, timing pulley, coupling, drive shaft, drop forged parts, CNC machined parts, agricultural parts and conveyor line parts. Most of Ocean Oem customers will send their drawings, some will send their sample. Ocean is pride in its capacity to develop products based on individual designs. The group's global stature is reinforced by excelent products and commitment to post-sale service, earning esteemed reputation on the international market.Ocean have extensive experience in serving customers from various regions, with our products being well-received in the American, European, South American, and Asian markets. Manufactured using modern computerized machinery, our products meet international quality standards and are designed for optimal performance.With a focus on competitive pricing, timely delivery, responsive customer service, and comprehensive after-sales support, Ocean ensure customer satisfaction at every step. Our production processes adhere to ISO9001 standards, and Ocean are capable of designing and manufacturing non-standard products to meet specific customer requirements.Quality and credibility are at the core of our business philosophy, and Ocean are committed to providing the best services and top-notch products to our customers. For more information or samples, please reach out to us, and Ocean guarantee a prompt response. FAQ
FAQ:
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 10 workdays.
2.Production Lead-times: 20-40 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can't find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check.

---
