| US$15,500.00-16,000.00 | 1 Set (MOQ) |

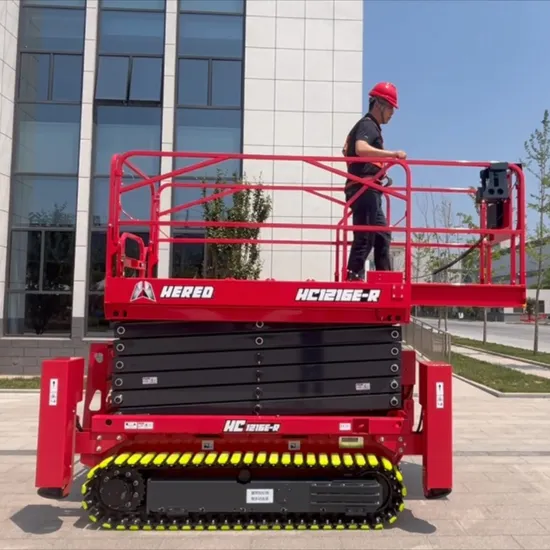

| MODEL | HC1216E-R |
| A-Max. Platform Height(In/out) | 11.8m/11.8m |
| Max. Working Height(In/out) | 13.8m/13.8m |
| B-Platform Length | 2.26m |
| C-Platform Width | 1.12m |
| Extension Size | 0.9m |
| D-Heights (Rails Up) | 2.63m |
| Height (Rails Down) | 2.03m |
| E-Overall Width with Outriggers | 2.83m |
| F-Overall Width | 1.6m |
| G- Ground Clearance | 150mm |
| PERFORMANCE | |
| Platform Capacity | 320kg |
| Extension Capacity | 113kg |
| Max. Occupancy(in/out) | 2/2 |
| Max.Wind Speed | 12.5m/s |
| Drive Speed (Stowed) | 4km/h |
| Turning Radius | Rotate in Place |
| Up/Down Time | 65/60s |
| Gradeability | 0.4 |
| Max. Slope | / |
| Leveling angle of the legs | 12°/5° |
| Drive | Rear Crawler |
| Crawler (mm) | 230mmX90mmX53 |
| POWER | |
| Batteries (V/Ah) | 8X6V/200Ah |
| Charger | 100-240VAC/13.5A |
| WEIGHT | |
| Weight | 3660kg |
