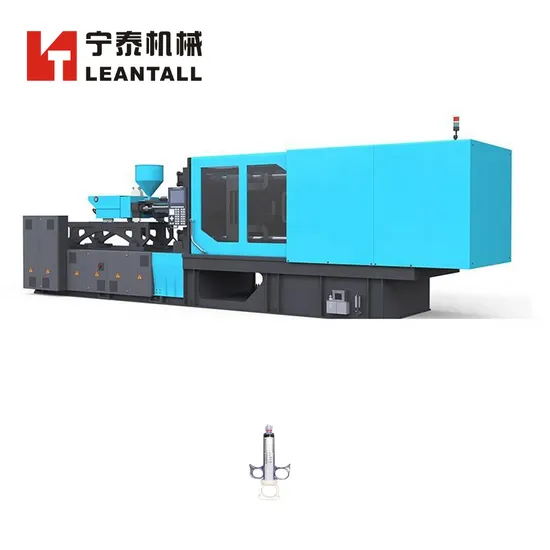

Nt120 Mini Plastic Part Injection Molding Machine Dimension 4.25*1.1*1.85 for Global Buyers

US$14,000.00
1-2 Sets
US$13,000.00
3+ Sets

Basic Info.

Model NO.
NT120
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Marketing Type
Hot Product
Core Component
Motor, PLC
Material
Stainless Steel
Applicable Industrial
Manufacturing Plant
Voltage
380V/50Hz 3p+N+E(Alterable)
Function
Plastic Parts Production
Mold
Can Be Customizable
Clamp Force
1200kN
Space Between Tie Bars
360*360
Transport Package
at Seller′s Option
Specification
4.25m*1.1m*1.85m
Trademark
Leantall
Origin
China
Production Capacity
20sets/Month

Packaging & Delivery

Package Size
425.00cm * 110.00cm * 185.00cm
Package Gross Weight
3100.000kg

Product Description


Product Parameters
Part Name Unit NT120
Injection unit SCREW DIAMETER mm 32 35 38
SCREW L/D RATIO L/D 22 20 18.5
INJECTION STROKE mm 165 165 165
NJECTION SPEED Mm/sec 104 104 104
SHOT VOLUME(THEORETICAL) CM3 133 158 187
INJECTION WEIGHT(PS) g 121 144 170
INJECTION PRESSURE Mpa 203 170 144
INJECTION RATE cm³/sec 83 100 117
SCREW SPEED rpm 210
clamping unit CLAMP FORCE Kn 1200
OPEN STROKE mm 330
SPACE BETWEEN TIE BARS mm×mm 360X360
MAX.MOULD HEIGHT mm 380
MIN.MOULD HEIGHT mm 150
EJECTOR STROKE mm 100
EJECTOR FORCE Kn 33
EJECTOR NUMBER N 5
others MAX.PUMP PRESSURE Mpa 16
SEVRO DRIVE POWER Kw 11
HEATING POWER Kw 7
MACHINE DIMENSION(L*W*H) m×m×m 4.25*1.1*1.85
MACHINE WEIGHT(ESTIMATE) T 3.1

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
