1/4-6" 6-150mm Hydraulic Crimping Machine in China with Big Discount

Product Description

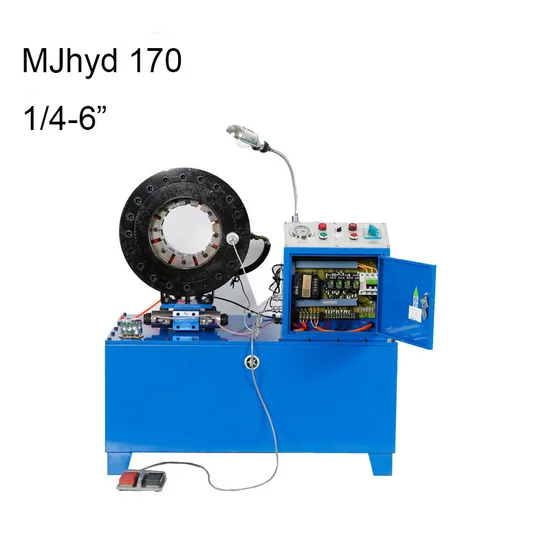

Big size 1/4-6" 380V 5.5KW 10L hydraulic hose crimping machine Product Description

Crimping inner diameter range	1/8-6" 3-150mm 1-4 wire
Crimp outer diameter range	4-190mm
Motor power	220v 4KW / 380V 5.5KW
Voltage	220V single / 380V 3 phases or customize
Oil pump	10L
Max opening	230mm
The max open tolerance	±30mm
Scale accuracy	0.01mm
Operate methods	Automatic, button or foot pedal
Dies molds	regular 17 sets ,could customize for more
Dies number	15mm 19mm 23mm 26mm (length 60mm)
	31mm 36mm 41mm (length 70mm)
	47mm 55mm 63mm (length 80mm)
	75 84 105 116 130 150 170mm (length 100mm)
Packing size	L 109* W 69 * H 126cm
Gross weight	850KG

Detailed Photos
Work on different hose
Factory product process
Payment methods We usually accept the payment via T/T(Telegraphic Transfer/bank transfer), Payment on line, Wetern Union payment and so on.
Usually 30% in advance and balance pyament before delivery. If you have any question,please contact me.
FAQ Q1 : Are you factory ?A1: Yes,we are factory,and our factory has over 18 years experice for product the machines;Q2: Do you have the machine in stock?A2: We usually keep the machine in stock, please kindly tell me which model you want,we will provide you more detail information.Q3: Could you customize the voltage ?A3: Yes,we can customize the voltage ,we have experience customize on 230V 240V 400V 415V and 110V, if you want customize the voltage,please contact me.Q4: How about the warranty?A4: Firstly our machines have 3 years warranty time,its long term warranty for this kind machine;Then we very confident that if you crimp the hose/fitting within its ability and operate right way,the machine would not workwrong;If your machine cann''t work,please contact us,we will help you fix it or send you some spares.Q5 : Could you customize dies molds?A5 : Yes,we are very experience on customize dies, suck like for air conditioning,brake hose and so on. We could customize thedies pattern or dies number regarding your requirement.Q6: Does the machine operate easily?A6: Yes, We complete testing each machine before send,no need anymore adjust,we package installation instructions and use tip foreach machine,we also could provide the operate video.Q7 :Can you produce product with my own brand?A7. Yes, it''s available except famous brand which are not allowed.Q8: Could you customize color for me?A8: Yes,we can customize the color regarding your requirement.

---
