Nadun Vtc75 CNC Vertical Lathe with Advanced Live Tooling High Precision Machining Solution

US$56,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VTC75
Type
Vertical Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Length of Workpiece (mm)
700
Machining Capacity
Medium Duty
Spindle Bore(mm)
160
Spindle Motor Power(Kw)
22
No. of Spindles
Single
Number of Axes
2
Travel (X Axis)(mm)
700 mm
Travel (Z Axis)(mm)
700 mm
Tool Post Stations
8
Weight (Kg)
9500
Max. Spindle Speed (r.p.m)
1000 r.p.m
Width of Bed (mm)
45 mm
Max. Turned Length (mm)
700
Positioning Accuracy (mm)
±0.008
Repeatability (X/Y/Z) (mm)
±0.005
Transport Package
Transparent Plastic Wrap, Plywood Wooden Case
Specification
2700*2100*3200mm
Trademark
Nadun
Origin
Shandong Province, China
HS Code
8462919000
Production Capacity
30 Sets/Month

Packaging & Delivery

Package Size
270.00cm * 210.00cm * 320.00cm
Package Gross Weight
9500.000kg

Product Description

Nadun VTC75 CNC Vertical Lathe with Advanced Live Tooling High Precision Machining Solution Product Description
This CNC Vertical Lathe features:
1. The base, column, and slide are made of high-grade gray cast iron for strength and long-term accuracy stability.
2. Utilizes a roller-type linear guide for ultra-high rigidity and heavy load capacity, improving positioning accuracy and load-bearing capacity.
3. The servo main motor connects to the spindle through a synchronous toothed belt, ensuring repetitive positioning accuracy with stepless speed control for various machining requirements.
4. Longitudinal and transverse feeds are controlled by high-power servo motors, with a load balancing mechanism in the longitudinal feed to extend the screw's life cycle.
5. Support at both ends of the ball screws uses imported double-row bearings, ensuring machining accuracy.
6. Features an adjustable electric lubrication pump for intermittent automatic lubrication, ensuring precision in all moving parts.
7. The tool holder adopts a multi-station CNC tool holder for one-time clamping, reducing tool change time and improving work efficiency.
8. The spindle offers customization options such as a rotary table or hydraulic chuck at the upper end, and a rotary oil cylinder (single-piston or double-piston) at the lower end for versatile workholding capabilities.

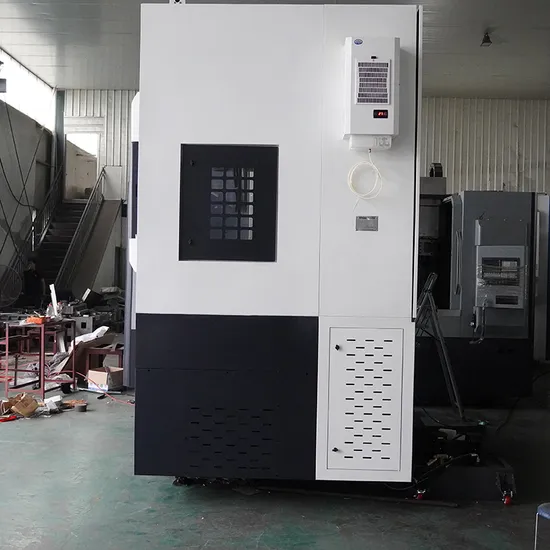

Detailed Photos
Product Parameters
Project
Specification
Unit
VT45
VT65
VT75
Machining Capacity
Max. Turning Diameter
mm
∮560
∮650
∮750
Max. Cutting Diameter
mm
∮450
∮600
∮700
Spindle
Spindle Face Type

Straight
Straight
Straight
Spindle Speed
rpm
100-2000
100-1000
100-1000
Chuck Diameter
mm
500
500
610
Tool Magazine
Tool Capacity
pc
Horizontal 8
Horizontal 8
Horizontal 8
Travel
X-Axis Travel
mm
400
420
700
Z-Axis Travel
mm
500
500
700
Hydraulic Unit
Oil Tank Capacity
L
40
40
40
Hydraulic Motor Power
kW
2
2
2
Motor
Spindle Servo Motor Power
kW
15
19
22
Accuracy
Repeated Positioning
mm
±0.008
±0.005
±0.005
Positioning Accuracy
mm
±0.008
±0.008
±0.008
Machine Dimensions
Length * Width * Height
mm
2200*2300*2600
2150*2210*2970
2700*2100*3200
Weight (with Accessories)
kg
5000
7000
9500
Power Requirements
 Power Supply
3¢-AC 380V 50HZ±5%
Leakage protection, power failure protection
√
Three-color indicator for machine status
√
Long-term stable operation under the following conditions
Ambient temperature 5~38°
Ambient humidity<85%
Machine noise meets national standards
√
