Product Details
Product Description
Product Description
According to the requirements of the relevant domestic certification, food, medicine, electronics and chemical
industry warehouses, cold storage, cool storage, laboratories, clean room, electronic packaging materials
warehouse, transport vehicles and other environments are required to automatically monitor and record the
temperature, our company has developed a special measurement of temperature changes inside the pipeline,
according to the diameter of the pipeline, can be customized to different depths of probe size, of course, can
also be customized to measure the temperature of the outside of the pipeline changes in the probe. Of course,
the probe can also be customized to measure the temperature change of the outer wall of the pipeline.

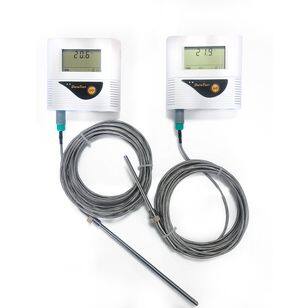

Ⅰ.Pipe special temperature recorder product features
⊕ Reusable, no consumables
⊕ Temperature measurement lead range (* high temperature: 280 ℃)
⊕ Adjustable recording interval (1 second to 24 hours)
⊕ Good probe interchangeability
⊕ ℃ and ℉ switching
⊕ ABS engineering plastic housing
⊕ Ultra-low power consumption design, battery life: 1-2 years
⊕ Upper and lower limit of temperature can be set, with beep alarm function.
Sound and light alarm, SMS alarm and telephone alarm (optional).
This product really realizes the requirement of 24-hour monitoring
⊕ Data: curve and report two formats. Including minimum, maximum and average temperature analysis.
Ⅱ.Pipeline special temperature recorder technical parameters
Temperature range
| -50℃~280℃
|
Temperature accuracy
| ±0.5℃ (0℃~100℃), others: ±1℃
|
Temperature resolution
| 0.1℃/F
|
Probe material Teflon wire (up to 280°C), PT1000
| Probe material Teflon wire (high resistance 280℃), PT1000
|
Storage capacity
| 32768 groups
|
Alarm setting Standard
| Upper and lower limit audible alarm (sound and light, telephone alarm and SMS alarm optional)
|
Refresh rate
| 1 second or synchronized with recording interval
|
Recording interval
| 1 sec~24 hours adjustable
|
Communication interface
| USB 2.0
|
Battery life
| High-energy lithium battery, 1 ~ 3 years (depending on the frequency of use)
|
Storage environment
| -20℃~70℃
|
Dimensions
| 102 mm×109 mm×29mm
|
Random accessories
| USB cable, warranty card, certificate of conformity and professional software (9-24V power adapter option)
|
>>
