Product Description
Product Description

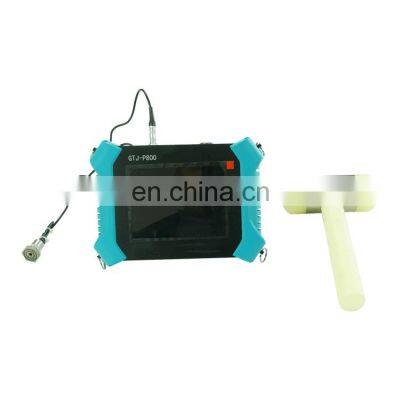

Product DescriptionPile integrity tester is a test and analysis instrument for pile integrity testing and monitoring of precast pile driving process. Under impact or vibration load, the pile structure integrity and vertical bearing capacity of single pile are tested and analyzed. The purpose is to determine the bearing capacity of pile and the integrity of pile structure.Product ModelP800 Pile Integrated InstrumentSystem Noise VoltageLess than 2 mVDynamic Rangemore than 138dBAmplifier Band10Hz~10kHzA/D Resolution16 bit A/DSampling Length1024. 2048. 4096Time Indication ErrorLess than 1%Channel NumberOneAmplification Factor1~128Data Transmission ModeWireless Cloud Transport(Options)Trigger ModeSignal triggeringSensor Senditivity100mV/gSensor Frequency Band1~10000HzContinuous Working HoursMore than 10 hoursPowder SupplyBuilt-in rechargeable lithium battery (+7.4V)Display640*480 Capacitance ScreenOperational ModeTouchWeight 7KgSize420x140x345mmFEATURESFEATURES1.New upgraded wireless cloud transmission function;2.The operation of the instrument is convenient and fast. From the requirement of engineering inspection, the user can quickly master the usage method;3.Small size, light weight, easy to carry;4.The user operates through the touch screen, and the interface is simple;5.Support multiple waveform processing methods to make defect positioning more accurate;6.Large-capacity data memory, support for mobile storage;7.Built-in rechargeable lithium battery, long standby time;8.The analysis software under Windows platform has comprehensive functions and flexible printing settings. It can print preview and output processing results, and can generate test reports.Company ProfileCangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.It also has warehouse, be assured for sufficient supply. We are continuing to design and produce new production to satisfy customers’ request. Welcome to visit us for business negotiation!Factory WorkshopHot SalesCertificationsCustomer PhotosPacking and ShippingFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material. Besides, we could also purchase products as request.Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3: What's the MOQ of the product?A: Different items have different MOQ. Welcome to contact our sales for getting more details.Q4: Do you have an OEM service?A: Yes. We can provide OEM services according to your requirements.Q5: How long is the production cycle after ordering?A: General it is about 15-30 days. We will send the time according to the order’s quantity.Q6: What are the payment terms?A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
>>
