| US$4,900.00-5,550.00 | 1 Piece (MOQ) |

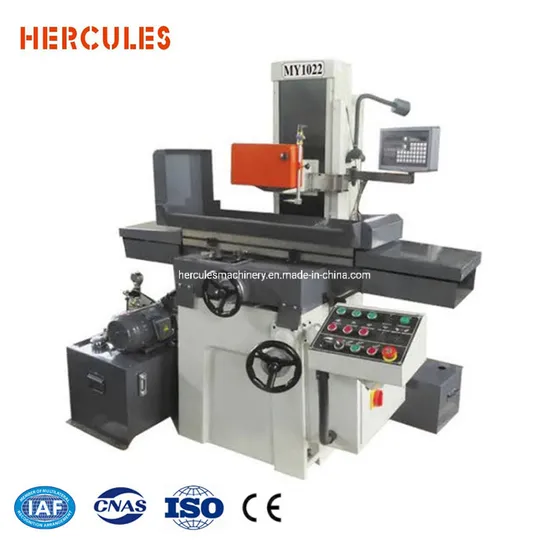

| Specification | Unit | MY1022 | |
| Table size(L×W) | mm | 520x250 | |
| Max.travel of table | mm | 560x260 | |
| T slots(Width×No.) | mm | 14×1 | |
| Distance from spindle center to table surface | mm | 450 | |
| Wheel size(dia×width×bore) | mm | 200x20x31.75 | |
| Max.Spindle speed | rpm | 2850 | |
| Table longitudinal speed(X axis) | m/min | 3-20 | |
| Table horizontal the amount of feed(Y axis) | Continuous | mm/min | 150 |
| Intermittent | m/min | 0-5 | |
| The handwheel rotates | mm | 4 | |
| Hand wheel each grid | mm | 0.02 | |
| Vertical feed wheel feed | The handwheel rotates | mm | 2 |
| Hand wheel each grid | mm | 0.01 | |
| Spindle motor | Kw | 1.5 | |
| Coolant pump | W | 40 | |
| Hydraulic motor | Kw | 1.5 | |
| Working pressure | Mpa | 3 | |
| Fuel tank capacity | L | 80 | |
| The maximum flow | L/min | 18 | |
| The machined surface of the base of parallelism | mm | 300/0.004 | |
| Surface roughness | μm | Ra0.32 | |
| Machine weight | kg | 1250 | |
| Packing weight | kg | 1350 | |
| Packing size(LxWxH) | mm | 1750x1350x1960 | |
| Hercules Machinery Equipment Ltd. | |||
