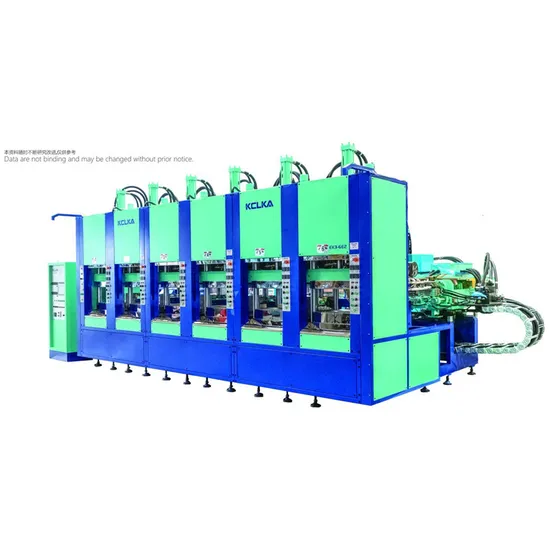

New Brand Auto EVA Injection Shoe Moulding Machine with Servo System

Product Description

Work Station	station	6
Clamping Force	ton	180
Mold Plate Size	mm	(290*550)*2
Mold Height	mm	100-220
Mold-opening Stroke	mm	350
Injection System
Injector		2
Diameter of Screw	mm	Φ65
Injection Cap(Max)	cm³	995
Injection Pressure	kg/cm²	0-130
Injection Speed	cm/sec	0-10
Rotating Speed of Screw	r.p.m	0-190
Temperature Control	section	4
Electricity Consumption
Heater Barrel	kw	9.8*2
Heating Plate	kw	76.8
Hydraulic System	kw	51.9
Vacuum Pump	hp	1.5
Cooling Fan of Barrel	hp	1
Total Electricity	kw	148.3
Oil Tank Size	L	1000
Machine Weight	kg	26000
Machine Dimension	mm	8000*4500*3000

Data are not binding and may be changed without prior notice.
1.Its product range includes EVA slippers, sandals, clogs, mid-sole, sport protectors and various kinds of shoes and shoe accessories all depends on the EVA shoe mould and can also make EVA wheel for toys and so on.
2.The clamping force can be increased from 150 to 210 tons, according to your requirement.
3.The foam EVA injection molding machine is fully hydraulic and automatic operation except taking out product.
4.It is PLC controlled, its humanized parameter computer operation interface provide quick and exact terms of production.


Character:
1.Low operation height,Operation height in accord with human engineering
2.Extra height opening stroke
Act by fixed opening stroke: 350mm, which is not affected by any mould thickness changes and
3.available for 2plates mould,Mould thickness adjusting mechanism
Mould adjusting scope: 100-200MM
4.Rapid mould opening ,Act by toggle mechanism which opens the mould rapidly
5.Speedy injector movement
Driven by linear-track, allowing speedy moving and precise positioning,Energy saving design
6.No need water circulation for mould station
7.Space saving design,Put oil tank together with injection base, which makes the structure compact and saves more space.
Its daily productivity is 2*18*8*24=6912 pairs by theory calculation.for 1 pair in 1 mould,For 2pairs in 1 mould is 6912*2=13824 pairs per 24hours
Company Proflie:
Introduction: (scale, concept, industry type, etc.)
KCLKA Machinery Manufacturing Co., Ltd. was established in 2003 and is located in Jinjiang City, "The capital of Chinese brands". It is a high-tech research and development enterprise specializing in the production of various shoe processing equipment. The company now has more than 200 employees and a modern standard factory building of more than 60,000 square meters, with factories in Jinjiang and Xiamen.
KCLKA Machinery's products are well-known in the footwear manufacturing industry for their complete categories, reliable quality and thoughtful service. The main products are EVA injection molding machines, EVA secondary foaming molding machines, PVC injection molding machines, TPR injection molding machines, E-TPU Foam molding machines and other shoe-making machines, various matching machinery and equipment, such as dripping machines, etc. At present, the products are always in a leading position in the industry and are exported to dozens of countries on five continents including Turkey, Africa, South Africa, Vietnam, Russia and Southeast Asia. The domestic and foreign sales and technical service systems have also been improved.
FAQ:
1. What are the characteristics of EVA injection molding machine?
Energy Saving Design: No need water circulation for mould station, using efficient heat insulator material.
2. Compared with other machines, what are the advantages of your Machine?
Energy Saving Design, environmental protection, low carbon, energy saving and emission reduction; Low energy consumption and high output
3. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.

---
