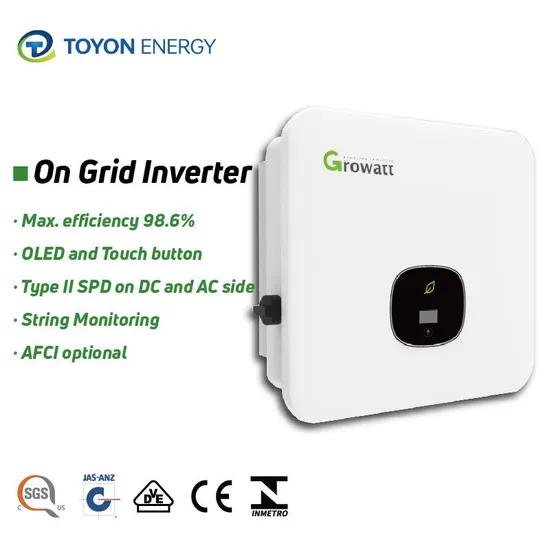

High Efficiency Growatt 10kw on Grid Solar Inverter 3kw 5kw 13kw 15kw Residential Solar Inverter

Product Description

Product Description· Dual independent maximum power point tracking
· Built-in DC switch
· Compatible with RS485/Wifi/GPRS/4G communication
· 140V-1100V input voltag range
· The maximum efficiency is as high as 98.6%
· OLED+LED/WIFI+APP display
· Integrated with touch button
· Protection grade Ip66
· The weight is only 16kg · Simple installation
Product Parameters

Datasheet	MOD 10KTL3-X	MOD 11KTL3-X	MOD 12KTL3-X	MOD 13KTL3-X	MOD 15KTL3-X
Input data (DC)
Max. recommended PV power	15000W	16500W	18000W	19500W	22500W
Max. DC voltage	1100V
Start voltage	160V
Nominal voltage	580V
MPPT voltage range	140V-1000V
No. of MPP trackers	2
No. of PV strings per MPP tracker	1	1	1/2	1/2	1/2
Max. input current per MPP tracker	13A	13A	13/26A	13/26A	13/26A
Output data (AC)
Nominal AC voltage	220V/380V, 230V/400V (340-440V)
Max. output current	16.7A	18.3A	20A	21.7A	25A
Adjustable power factor	0.8leading…0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE
Efficiency
MAX. efficiency	98.6%
European efficiency	98.1%	98.1%	98.2%	98.2%	98.2%
MPPT efficiency	99.9%
Protection devices
DC reverse polarity protection	YES
AC/DC surge protection	YES
AC/DC surge protection	Type II / Type II
General data
Dimensions (W / H / D)	425/387/178mm
Weight	14 KGS	14 KGS	16 KGS	16 KGS	16 KGS
Cooling	Natural convection
Protection degree	IP66
DC connection	H4/MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP
Warranty: 5 / 10 years	Yes/Optional

Products SeriesOff Grid Inverter3KW/5KWSingle Phase 220-240V 50/60HzUp to 6 units in parallelOn Grid Inverter3-6KW2 MPPTs
Single Phase 220-240V 50/6HzOn Grid Inverter15-40KW3/4 MPPTs
Three Phase 380-415V 50/6HzOn Grid Inverter50-70KW3 MPPTs
Three Phase 380-415V 50/6HzOn Grid Inverter50-250KW6-10 MPPTs
Three Phase 380-415V/460-500V 50/6HzCertifications
Projects Case
Packaging & Shipping
Company Profile

Anhui Tongyuan Environment Energy Saving Co., Ltd. (stock code: 688679) was established on April 15,1999. It was successfully listed on the Science and Technology Innovation Board of the Shanghai Stock Exchange on December 25, 2020. The company is positioned as a "one-stop environmental solution provider" and is committed to providing customers with leading ecological and environmental technology services in China. Toyon Energy Co., Ltd is one business unit of Tongyuan Environment that focuses on the field of new energy, committed to promoting the transformation of traditional energy to green energy. Toyon's business covers residential, commercial, landfill + photovoltaic composite projects, wind power, charging piles, energy storage and other diversified fields, while providing multi scenario integrated application solutions for light storage. Through continuous innovation and technological upgrades, Toyon can provide customers with efficient, reliable, and environmentally friendly new energy products and services, making a positive contribution to achieving sustainable development.

FAQ1.What main products can you provide? We can provide many series of solar products,mainly producing the solar panels, solar inverters,power wall,lithium ionbatteries,gel batteries and also all in one solar system solution according to your needs. 2. How is your technical support? We can provide lifetime online support through WhatsApp/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime. 3. What about the lead time? We can always deliver within 5-15 working days.The common products we always have the stock, it can be sent out within 15 days. While the big order needs to negotiate the finish production time and promise it to our customers. 4. Can you provide OEM service? Yes, as a professional solar system manufacturer, we can provide customer-made service with OEM and on-site installation comprehensive support, and after-sales services. 5. How can we guarantee quality? We can provide a pre-production sample before mass production and also final inspection before shipment. We can also provide 24-hour after-sales service. Regardless of the time difference, we will solve the problem for you as soon as possible. 6. What's the payment term? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.Accepted Payment Type: T/T, L/C, PayPal.

---
