DTWMAC Woodworking Machinery Brush Sanding Machine for Profile Sanding

Product Description

Detailed Photos

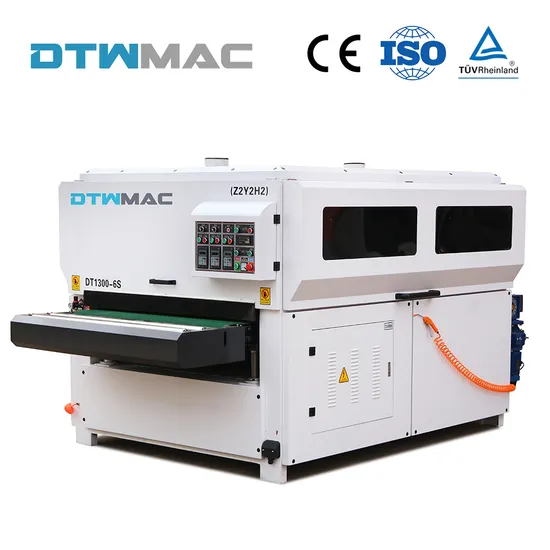

In this brush sanding machine DT1300-6S, three inner structure can be chosen. 1. Two stations of small rollers+ two stations of disc rollers+ two stations of long drum rollers (if the material has both cross and vertical groove, this structure is recommended)
2. Two stations of disc rollers +four stations of long drum rollers (If the material has mainly vertical groove, this structure is recommended)
3. Four stations of disc rollers+two stations of long drum rollers (If the grooves on the material is complicated, this structure is recommended because disc rollers can sand most area of the material)

Product Parameters

Max Working Width	1300mm
Max Working Thickness	10-160mm
Min Working Length	≥350mm
Roller Speed	Inverter Control
Conveyor Speed	5-20m/min
Long Roller Motor	1.5KW×2
Conveyor Motor	1.5KW
Lifting Motor	0.55KW
Disc Motor	1.5KW
Disc Swing Motor	0.55KW
Small Roller Motor	1.5KW*2
Small Roller Swing Motor	0.55KW
Total Power	10.65KW
N. W.	1900KG
Packing Dimension	3180*2130*2150mm
Using Dimension	3650*2050*2160mm

Packaging & Shipping
FAQ
1. Do you offer installation?DTWMAC wood sanders are assembled and adjusted well before package. It's very easy to install the machines at your workshop when you receive them. Videos guidance and English manuals can help you in installation easily.2. Where can we buy the replacement parts?Most of DTWMAC wood sander parts are ready in stock. They can be sent to you directly from our warehouse with cost price.3. What technical support do you offer?* Technical support by phone, email, video
* English version video and manual
* Engineer available to service machinery overseas if required4. Can you customize the machine for our products?All wood sanders in DTWMAC can be customized according to clients' requirement not only the appearance but also the inner structure.5. What's your advantage comparing with other suppliers?With 10 years of production and export experience, DTWMAC has built a full system in pre-sale service, production process, quality control and after-sale service. This will help our clients to save time and cost and also make sure to provide them high quality machines.
6. Are you a manufacturer or a trading company?
DTWMAC is the woodworking machinery manufacturer with 10 years of production experience while we also know the whole process of exporting. That's why you can rely on us not only for machine quality but also for our services. 7. What kind of products do you sell?
DTWMAC mainly manufactures wood sanders, but we sell different woodworking machines including sliding table saw, edge bander, press machine, drilling machine, gluing machine, and other machines that you need for woodworking. That is because we have been in woodworking machine field for over 10 years and we have reliable cooperative factory for different machines

---
