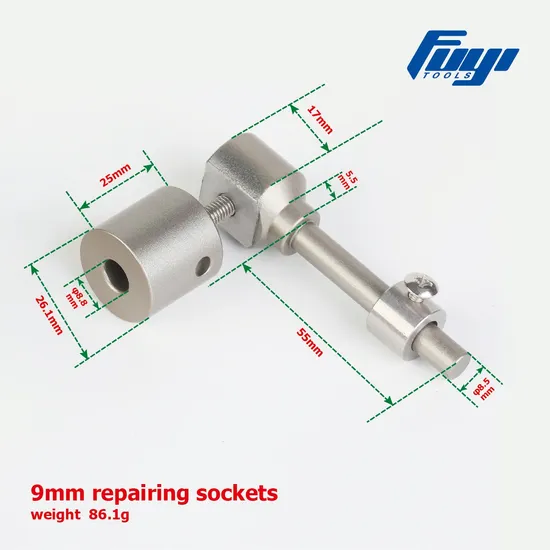

9 mm Repairing Hand Held Socket Welder Sockets & Spigots

Product Description

25mm Sockets & Spigots

Product Description
Coating with Japanese PTFE
Silverstone Grey Sockets & Spigots.
25mm Non-Stick Socket faces for welding plastic pipes with heating iron.
Each Size is sold in male and female pairs. 3 layers of Non-Stick Coating. Metric PPR pipe and fittings.
Available sizes: 20 mm 25 mm 32 mm 40 mm 50 mm 63 mm Thick walls for sturdy performance Supplied with screw that threads on, for convenient mounting to heater face PTFE coated with excellent anti-stick feature Socket/spigot/head/adapters pair for metric pipe Manufactured according to the European international standard
About DVS Type A sockets and Spigots Sizes as following, at the same time we have type B sockets.
16mm , 20mm , 25mm , 32mm , 40mm , 50mm , 63mm, 75mm , 90mm , 110mm , 125mm , 140mm , 160mm.
IPS Adapters
IPS 1/2" Sockets , IPS 3/4" Sockets , IPS 1" Sockets , IPS 1-1/4" Sockets , IPS 1-1/2" Sockets , IPS 2" Sockets
CPS Adapters
CPS1/2" Adapters.
Socket Fusion Welding Machine use for heating and joining plastic pipes & fittings including PPR,PB and HDPE with aluminum sockets and spigots.
The quality of socekts and spigots affects the welding quality. Good quality of sockets can help you finish your job quickly and easier.
Product Parameters
According to German Standards (DVS 2208) designed , there are two version "A" and "B" ,different in size and ewlding coupling depths.

Specifications of Pipes	Diameter Of Male Head-Sockets		Diameter Of Female Head-Sockets		Heat Fusing Depth
	A	B	A	B	A	B
16	16.04	15.84±0.04	15.54	15.44±0.04	13	13
20	20.05	19.78±0.04	19.53	19.38±0.04	14	14
25	25.04	24.77±0.04	24.51	24.32±0.04	15	16

The Sockets & Spigots are suitable for the socket fusion welding of the following leading systems:
Aquatherm PP-R, Wefatherm PPR, George Fischer`s PP-R, PB, PP, PE etc Pipes & Fittings.
Package: each sockets & spigots packaging with nylon bag . White box package or Plasitc Box Package.
For use with the Hand Held Socket Fusion Welding Machine
Sizes available for 32mm Socket Fusion Welding Machine Welder :
• 16mm
• 20mm
• 25mm
• 32mm
Sizes available for 40mm PPR Welding Machine:
• 16mm
• 20mm
• 25mm
• 32mm
• 40mm
Sizes available for 63mm Joining Heater Machine:
• 16mm
• 20mm
• 25mm
• 32mm
• 40mm
• 50mm
• 63mm
Sizes available for 110mm Socket Fusion Welding Machine:
• 16mm
• 20mm
• 25mm
• 32mm
• 40mm
• 50mm
• 63mm
• 75mm
• 90mm
• 110mm
Sizes available for 160mm Butt/Socket Fusion Welding Machine :
• 16mm
• 20mm
• 25mm
• 32mm
• 40mm
• 50mm
• 63mm
• 75mm
• 90mm
• 110mm
• 110mm
• 125mm
• 140mm
• 160mm 25MM Sockcets & Spogots installation Guide

---
