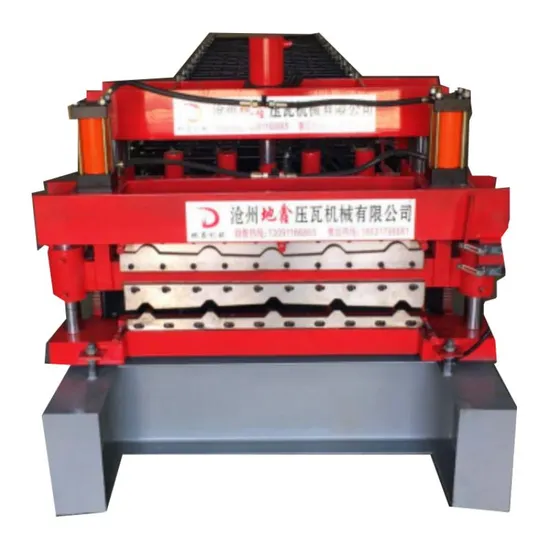

Double Layer Profile Sheet Rolling Forming Machine

Product Description

Automatic Color Steel Double Layer Decker Corrugated Trapezoidal Design Profile Metal Roofing Sheet Wall Panel Cold Roll Forming Tile Making Machinery Line
Product Description
Product Description:
1.Our products can use galvanized steel sheet,colored armor plate or aluminum plate as the material plate.
2.Controlled by computer,PLC display,operationis easy,running is steady and reliable,endurable,maintence-free.
3.We can make and design what kinds of roll forming machine according to the request of customers.
4.Our products are widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction and have features such as nice appearance and durable
Our advantages:
High Quality
High Speed
Low Energy Consumption
Automatic & Easy Operate
Excellent Service
Panel Drawing: ( Send us your panel drawing, we can customize according to your requirement)
Product Pictures:
Work Flow:
Product Parameters:

Product Name	Double Layer Roll Forming Machine
Material	Colored steel sheet, galvanized steel sheet, aluminum sheet
Thickness of coil sheet	0.3-0.8 mm
Material expand width	940,1000,1200mm as drawing
Efficiency width	835-840mm as drawing
Machine Details
Roller material	High grade no. 45 forged steel with 0.05mm hard chrome plating
Shaft material	High grade no. 45 carbon wrought steel
Cutting blade	Cr12 mould steel with quenched treatment
Diameter of shaft	70mm or as your requirement
Main frame	350H steel
Forming steps	Up layer:11 stations Down layer:13stations according to the final drawing
Productivity	10-15m/min
Hydraulic station power	4+4kw
Hydraulic pressure	10-12mpa
Appearance size	7000mm*1200mm*1500mm
Weight	About 4 tons
Hydraulic oil	46# hydraulic oil
Electric tension	380v 50 hz 3 phase or as your requirement
Cut mode	Hydraulic forming after cutting off
Cutter materia	Cr12 heat treatment
Electronic control system	Plc, touch screen, encoding counter
Color	Blue, green or red or as your requirement
Rolling material	45# steel,roller surfaces polishing, hard plating
Service life	2 years

Application:
Similar Products:
Certifications
product display
Company Profile
Packaging & Shipping

Buyre feedback
After Sales Service
Advantage of the service:
1.Provide engineering drawing design service
2.Provide machine customization service
3.Remote video service
4.Engineer on-the-spot installation service
5.Help customers booking shipping service
6.Help customers purchase raw materials service
After-sales service:
1.Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller's factory while before delivery.
2.Delivery Time: We guarantee the equipment will be ready for shipment within 30 working days after receipt of deposit .
3.After sale Service: 24 hours technical support by email, WhatsApp, Wechat or phone call.We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.
4.Warranty: One year guarantee for the whole machine and life-long maintenance
FAQ
Q1:How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
Q2. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q3. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q4. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q5. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q6. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q7. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

---
