Woodworking Machine Surface Sanding Wide Belt Sander

Product Description

Detail:

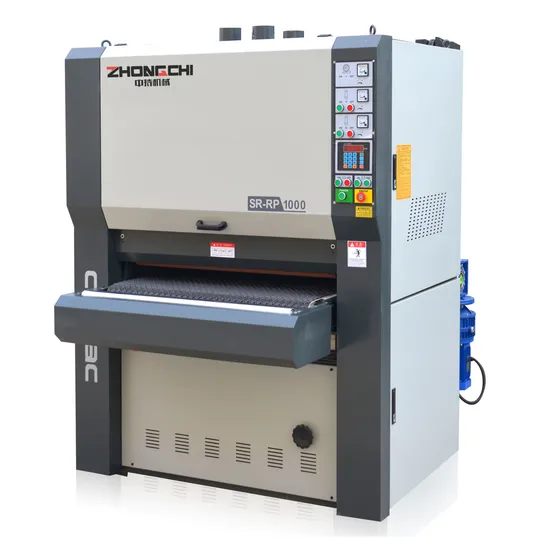

Product Description: The wide belt sanding machine is a sanding machine which is intended for professional use and is mainly used in the woodworking industry for sanding of solid wood and veneered surfaces. The high precision automatic general calibrating wide belt sanding machine is mainly used for surface sanding and fixed thickness sanding , suitable for timber , wood panels , block board , plywood , plywood , insulation panels , insulation materials , calcium silicate board , fiberboard , and other products Woodworking Wood Wide Planing Planer Sander with spiral cutter A wide belt sander is a critical tool in the production process. They may help to cut production time, reduce manpower requirements, and produce a finished product finer than the most expert human hand could ever make manually.
Features: The micro-computer front control panel can be operated conveniently and quickly. The feed speed is controlled by the frequency converter, which can be operated flexibly and conveniently. The frame has high strength, large weight and nice stability. The maintenance is convenient, safety performance is excellent, and the failure rate is low. The sanding unit adopts the cast structure with slight deformation and excellent damping performance. High-strength motor and top brand bearing ensure best performance. Technical Parameters:

Max. processing width	1000mm	630mm
Min.working length	350mm	350mm
Working thickness	2~200mm	2~200mm
Total motor power	27.87kw	20.37kw
First sand rack power	15kw	11kw
Second sand rack power	11kw	7.5kw
Feeding speed	5~25m/min	5~25m/min
Belt size	1020*2000mm	650*1930mm
Working air pressure	0.6~0.8Mpa	0.6~0.8Mpa
Volume of dust collection device	25m/S	25m/S
Overall size	1700 x 1400 x 2050mm	1700 x 1100 x 2050mm
Weight	2000kg	1000kg

Packing and Shipping:
Meeting:
Workshop:
FeedBack:
Certificate:
FAQ: Q1: What is the brand name of the Machine?
A1: The brand name of the Woodworking Machine is Zhongchi Brand
Q2: Where is the Woodworking Machine manufactured?
A2: The Woodworking Machine is manufactured in Qingdao,China.
Q3: Is the Woodworking Machine certified?
A3: Yes, Have CE certification.

Q4:I am a fresh man for this machine,what kind of machine I should choose?
A4:Very easy to choose, just tell us :
1. the work you want to do ?
2. the maximum size of your material ?
then we give you perfect solutions and suggestions.

Q5:When I got this machine, but I did not know how to use it,What should I do?
A5:We will send tutorial video and English version manual with the machine, If you still have some doubts,we can talk by telephone or Video. Or even send our engineers oversea to help you.

Q6:If some problems happened to this machine during warranty period,what should I do?
A6:We will supply free parts in machine warranty period if machine have some problem, While we also supply free after-service,so any doubts, just let us know, we will give you solutions.

Q7:What is the MOQ?
A7:MOQ for our products is 1 set machine, we could send it to the nearest port to you.

---
