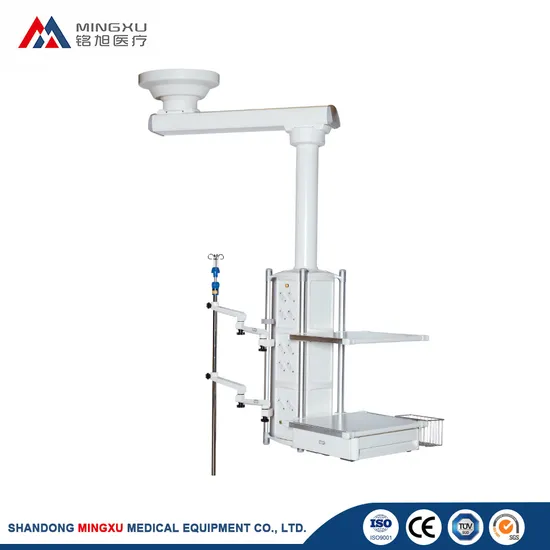

Bridge Type Tower Adjustable Surgical Ceiling Pendant for Medical Gas Supply Systems

Product Description

Main technical parameters 1. High-strength aluminum alloy is used; fully enclosed design, mold production; double-layer honeycomb structure of the suspension column improves the torsion and tensile resistance and ensures high load-bearing capacity.
2. Professional profiles, high-strength and high-precision aluminum alloy slide rails, and the entire suspension bridge is made of aluminum alloy profiles. The surface of the suspension bridge is sprayed with electrostatic sterilization, which is corrosion-resistant and easy to clean and disinfect.
3. Instrument platform 500mm*500mm: It is formed by metal molds and can be freely adjusted in height according to customer requirements; rounded corner anti-collision design. Both sides of the platform are equipped with international standard stainless steel 10×25 rails. Each layer of the instrument platform bears 60kg.
4. The cross-section of the hanging box conforms to the ergonomic design to ensure that the tray and infusion stand do not affect the plugging and unplugging of gas and electricity.
5. All pipelines of the functional box are arranged in an orderly manner in the box, and the gas and electricity are completely separated, which meets international standards. The four-column series of pendant towers achieve 360° functionality through advanced design concepts. Various functional box accessories can be optionally connected to the gas and electricity box, which is convenient for hanging a variety of accessories. A variety of equipment can be integrated or installed in series to meet product upgrade needs; modular, integrated medical pendant tower box, the box can be combined arbitrarily according to customer needs
6. Limit device
Damping brake, with a fixed limit device, pull down the handle to slide the functional box, release the handle and the functional box will be immediately fixed on the bridge body, 120° precision bearings ensure that the pendant tower connection is gapless and the rotation is flexible without drift.
7. Working power supply: AC220V, 50Hz; input power: 5KVA.
8. Configuration
8.1, bridge length 2800-3200mm (actual size is subject to user on-site measurement); 2 lighting lamps;
8.2, dry section tower: 1
The net load of the tower is 270kg, and the configuration is as follows:
1) Horizontal movement distance ≥ 800mm; horizontal rotation angle 340°;
2) Instrument platform: 2 layers;
3) Gas terminal (brand can be customized according to the hospital's requirements):
a. Use ISO specified colors, different types of gas terminals have different colors and shapes to prevent misoperation;
b. Effective life: can be connected and plugged in 20,000 times without failure;
c. Has three states of on and off;
d. Can be repaired with gas, easy to repair;
e. Gas terminal interface (national standard): 1 oxygen, 1 negative pressure suction, 1 compressed air; (type and quantity can be customized according to the hospital's requirements)
f. Use medical-grade gas hose;
4) Taiwan WONPRO power socket: 8, 220V, 10A, adjacent sockets do not affect each other when used;
5) 2 equipotential grounding terminals;
6) 1 self-priming drawer;
7) 1 RJ45 network communication port
8.3, wet section tower: 1
The net load of the tower is 270kg.
1) Horizontal moving distance ≥ 800mm; horizontal rotation angle 340°;
2) Instrument platform: 2 layers;
3) Gas terminal (brand can be customized according to hospital requirements);
a. Use ISO specified colors, different types of gas terminals have different colors and shapes to prevent misoperation;
b. Effective life: can be connected and plugged in 20,000 times without fault;
c. Has three states of on and off;
d. Can be repaired with gas, easy to repair;
e. Gas terminal interface (national standard): 1 oxygen, 1 negative pressure suction, 1 compressed air; (type and quantity can be customized according to hospital requirements);
f. Use medical-grade gas hose;
4) Taiwan WONPRO power socket: 8, 220V, 10A, adjacent sockets do not affect each other when used;
5) 2 equipotential grounding terminals;
6) 1 set of rotating arm stainless steel integrated adjustable infusion and infusion pump stand;
7) 1 self-priming drawer;
8) 1 RJ45 network communication port;
9) 1 sundries basket;

---
